FDUMJ112HKXE2 HEAT EXCH. AND FAN

FDUMJ112HKXE2 HEAT EXCH. AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

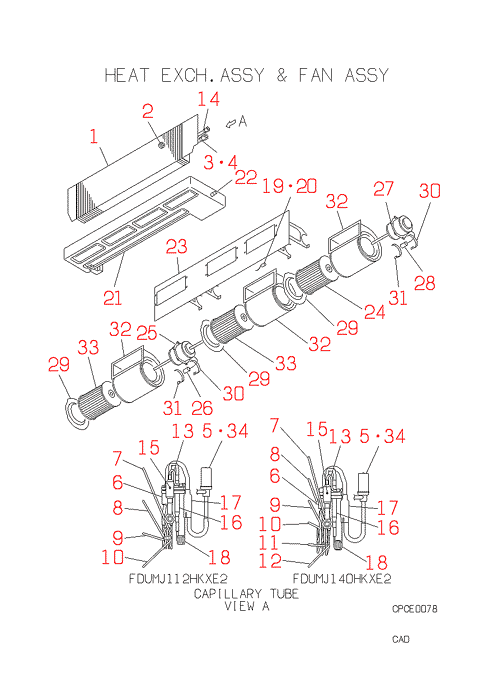

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJR311A101
HEAT,EX,AIR
Contact
[1-18] Contact
PJR311A105L
HEAT,EX,AIR
Contact
[2] Contact
S751W09
GROMMET
Contact
Notes: D13
[3-4] Contact
PJR315D100
HEADER GAS
Contact
[4] Contact
SSA323F012D
UNION
Contact
[5] In Stock
SSA387F022
EXP HKXA
Notes: EXPANSION VALVE BODY Show Image
SSA387F022
[6] Contact
SSA315A250
DISTRIBUTOR
Contact
[6-10] Contact
PJR315A011B
DISTRI ASY
Contact
[7] Contact
PJR315B133
CAPILLARY T
Contact
Notes: !D1.5XD2.5 L150
[8] Contact
PJR315B134
CAPILLARY T
Contact
Notes: !D1.5XD2.5 L150
[9] Contact
PJR315B135
CAPILLARY T
Contact
Notes: !D1.5XD2.5 L150
[10] Contact
PJR315B136
CAPILLARY T
Contact
Notes: !D1.5XD2.5 L150
[13] Contact
PJR315B150
CAPILLARY T
Contact
Notes: !D3.0XD4.0 L100
[13-16] Contact
PJR321A112B
PIPNG GS
Contact
[14] Contact
SSA323F012A
UNION
Contact
[15] Contact
SSA357A008BG
STRAINER
Contact
[16] In Stock
SSA385A015
VALVE CHECK
Show Image
SSA385A015
[17] Contact
SSA357A008BH
STRAINER
Contact
[17-18] Contact
PJR357A103D
STRAINER
Contact
[18] Contact
PJR315B207
CAPILLARY
Contact
Notes: !D1.0XD2.0 L500
[19] In Stock
PJA551A005
SENSOR
Notes: THI-R Show Image
PJA551A005
[20] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[21-22] In Stock
PJR454A100
PAN DRAIN
[22] In Stock
SSA326A003F
PLUG
Show Image
SSA326A003F
[23] Contact
PJR116A102
FAN BRACKET
Contact
[24] In Stock
SSA431D089B
IMPELLER
Notes: RIGHT
[25-26] Out of Stock
SSA511A351B
MOTOR AC
Substitute: SSA511A350B Notes: LEFT, 7KG 60X22X21
[26] Contact
SSA511A35113
CAPACITOR
Contact
Substitute: PSA552A006B
[27-28] In Stock
SSA511A352B
MOTOR
Notes: RIGHT
[28] Contact
SSA511A35213
CAPACITOR
Contact
[29] In Stock
PJB433A001
SHROUD
Show Image
PJB433A001
[30] In Stock
PFA116A207B
BRACKET, MOTOR
Notes: RIGHT, LEFT Show Image
PFA116A207B
[31] In Stock
PFA116A207C
BRACKET, MOTOR
Notes: LEFT Show Image
PFA116A207C
[32] Contact
PJB433B001D
CASING
Contact
[33] In Stock
SSA431D089A
IMPELLER
[34] In Stock
SSA382F452B
COIL S 150O
Notes: SM, EXPANSION VALVE COIL/ LENGTH 157CM Show Image
SSA382F452B
