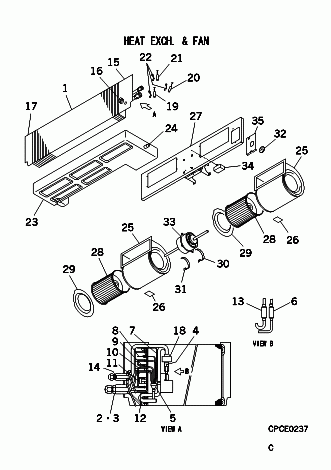

FDUMA90KXE5R HEAT EXCH. AND FAN

FDUMA90KXE5R HEAT EXCH. AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJR311A126A
HEAT EXCH(AIR)
Contact
[1-22] Contact
PJR301A104
HEAT EXCH ASSY(AIR
Contact
[2-3] Contact
PJR315D113B
HEADER ASSY,GAS
Contact
Notes: !
[3] Contact
SSA323F012C
UNION,SOLDER
Contact
[4] In Stock
SSA387F045A
VALVE EXPA
Notes: EEVC
[5] Contact
SSA315A252D
DISTRIBUTOR
Contact
[5-12] Contact
PJR315A031
DISTRIBUTOR ASSY
Contact
[6] In Stock
SSA357A059T
STRAINER
[7] Contact
PJR315B249
CAPILLARY(1)
Contact
Notes: !D2.2XD4.0 L290
[8] Contact
PJR315B250
CAPILLARY(2)
Contact
Notes: !D2.0XD4.0 L260
[9] Contact
PJR315B251
CAPILLARY(3)
Contact
Notes: !D2.4XD4.0 L220
[10] Contact
PJR315B252
CAPILLARY(4)
Contact
Notes: !D2.6XD4.0 L200
[11] Contact
PJR315B253
CAPILLARY(5)
Contact
Notes: !D2.6XD4.0 L190
[12] Contact
PJR315B254
CAPILLARY(6)
Contact
Notes: !D2.8XD4.0 L240
[13] Out of Stock
SSA357A059B
STRAINER
[14] Contact
SSA323F012A
UNION
Contact
[15-16] Contact
PJR141A104
PLATE BAFF
Contact
Notes: RIGHT
[16] Contact
S751W09
GROMMET
Contact
Notes: D13
[17] Contact
PJR141A105
PLATE BAFF
Contact
Notes: LEFT
[18] Contact
SSA382F212M
SOLENOID
Contact
Notes: FOR SM
[19] In Stock
PJA551A005
SENSOR
Notes: THI-R Show Image
PJA551A005

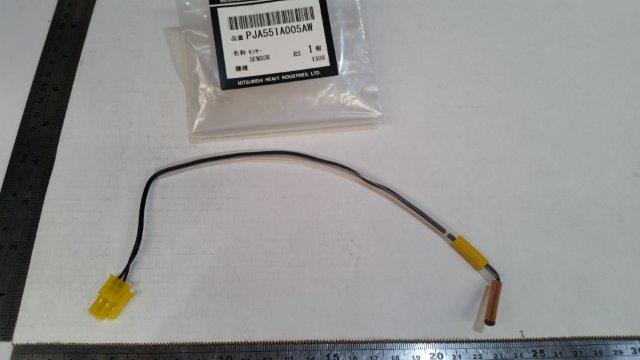

[20] In Stock
PJA551A005AW
SENSOR
Notes: THI-R2(CAPILLARY) Show Image
PJA551A005AW

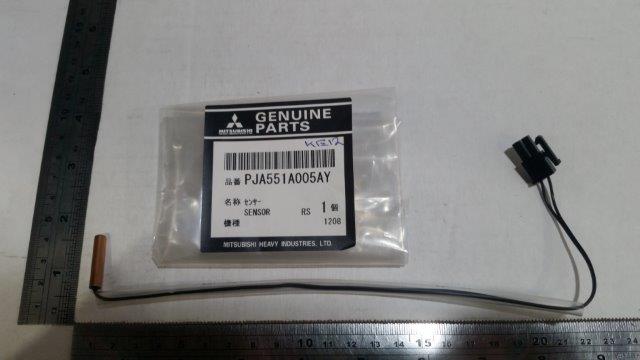

[21] In Stock
PJA551A005AY
SENSOR
Notes: THI-R3(GAS HEADER) Show Image
PJA551A005AY
[22] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR Show Image
RKJ941F001
[23-24] In Stock
PJR454A303A
PAN ASSY,DRAIN
[24] In Stock
SSA326A003F
PLUG
Show Image
SSA326A003F
[25-26] Contact
PJR433B005C
SCROLL ASSY
Contact
[26] Contact
RSA011H005B
LABEL,NOTICE
Contact
[27] Contact
PJR116A206A
BRACKET,FAN
Contact
[28] In Stock
SSA431D089A
IMPELLER
[29] Out of Stock
PJB433A001C
SHROUD,SUCTION
Substitute: OUT OF PRODUCTION
[30] In Stock
PFA116A207B
BRACKET, MOTOR
Notes: RIGHT, LEFT Show Image
PFA116A207B
[31] In Stock
PFA116A207C
BRACKET, MOTOR
Notes: LEFT Show Image
PFA116A207C
[32] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[33] In Stock
SSA511T223
MOTOR,AC
Notes: LEFT, left side
[34] In Stock
SSA552A774
CAPACITOR
Notes: 6MF 450VAC Show Image
SSA552A774
[35] Contact
PJR132A105
LID
Contact
SKU: FDUMA90KXE5R HEAT EXCH. AND FAN Category:
