FDUMA90KXE5R CONTROL AND PARTS SET

FDUMA90KXE5R CONTROL AND PARTS SET

Available Parts

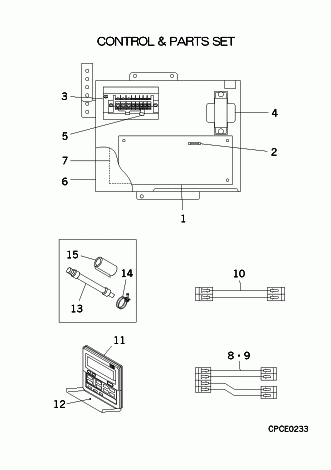

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-2] PJA505A158ZA PWB In Stock Notes: INDOOR PC BOARD Show Image
  • [1-5] PJR501A301G CONTROL UNIT Contact Notes: !   Contact
  • [2] SSA564A116G FUSE(CURRENT) In Stock Notes: 3.15 AMP FUSE, 3.15A Show Image
  • [3] SSA561B716DG BLOCK TERMI Contact Notes: TB   Contact
  • [4] SSA554A454 TRANSFORMER In Stock Notes: TRI Show Image
  • [5] PJA552F004 CAPACITOR A Contact   Contact
  • [6-7] PJR142A128G LID ASSY,CONTROL B Contact   Contact
  • [7] PJR011G024 LABEL,WIRING Contact Notes: !   Contact
  • [8] PJR504A305 HARNESS ASSY Contact Notes: CNRI-CNR,CNI, CNRI-CNR,CNI   Contact
  • [9] PJR504A232 HARNESS ASSY Contact Notes: CNN3-THI-R1 CNN5,THI-R2 CNN6   Contact
  • [10] PJR504A231 HARNESS ASSY Contact Notes: CNN4-THI-R3 CNN7   Contact
  • [11-12] PJA502A700AC WALL CONTROLLER Out of Stock Substitute: RC-E1R Notes: RC-E1 / RC-E1R - 3 WIRE, X-Y-Z, RC-E1R
  • [12] PJA129A708 COVER Z Contact   Contact
  • [13] SSA423A070 HOSE, DRAIN Out of Stock Substitute: PSA006A039 Show Image
  • [13-15] PJA006A317 PARTS SET Out of Stock Notes: INCL.CLAMP,HOSE INSULATION SET HOSE,DRAIN, INCL.CLAMP,HOSE
  • [14] V300Y38 CLAMP In Stock Notes: CLAMP Show Image
  • [15] SSA153B016BA INSULATION,PIPE In Stock Show Image
  • [16] PJR011F301H LABEL,MODEL NAME Contact Notes: !   Contact
SKU: FDUMA90KXE5R CONTROL AND PARTS SET Category:
