FDUMA90KXE4A HEAT EXCH. ASSY

Name: FDUMA90KXE4A HEAT EXCH. ASSY
SKU: FDUMA90KXE4A HEAT EXCH. ASSY
Availability: InStock

FDUMA90KXE4A HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

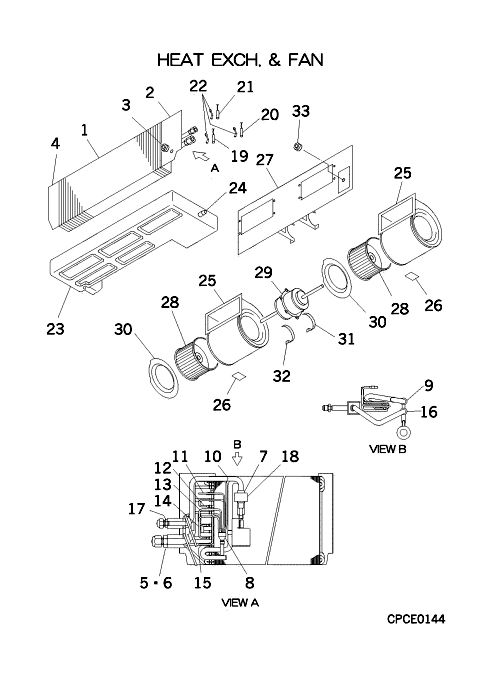

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJR311A126A

HEAT EXCH(AIR)

Contact

[1-18] In Stock

PJR301A101

HEAT EXCH A

[2-3] Contact

PJR141A104

PLATE BAFF

Contact

Notes: RIGHT

[3] Contact

S751W09

GROMMET

Contact

Notes: D13

[4] Contact

PJR141A105

PLATE BAFF

Contact

Notes: LEFT

[5-6] Contact

PJR315D113B

HEADER ASSY,GAS

Contact

Notes: !

[6] Contact

SSA323F012C

UNION,SOLDER

Contact

[7] In Stock

SSA387F036

EXP VALVE

Notes: SM, EEV(HEAT) or EEVH1-EEVH2 Show Image

[8] Contact

SSA315A252D

DISTRIBUTOR

Contact

[8-15] Contact

PJR315A029

DISTRIBUTOR

Contact

[9] In Stock

SSA357A059T

STRAINER

[10] Contact

PJR315B249

CAPILLARY(1)

Contact

Notes: !D2.2XD4.0 L290

[11] Contact

PJR315B250

CAPILLARY(2)

Contact

Notes: !D2.0XD4.0 L260

[12] Contact

PJR315B251

CAPILLARY(3)

Contact

Notes: !D2.4XD4.0 L220

[13] Contact

PJR315B252

CAPILLARY(4)

Contact

Notes: !D2.6XD4.0 L200

[14] Contact

PJR315B253

CAPILLARY(5)

Contact

Notes: !D2.6XD4.0 L190

[15] Contact

PJR315B254

CAPILLARY(6)

Contact

Notes: !D2.8XD4.0 L240

[16] In Stock

SSA357A059B

STRAINER

[17] Contact

SSA323F012A

UNION

Contact

[18] In Stock

SSA382F228J

COIL SOLENOID

Notes: FOR SM, LENGTH 40CM Show Image

[19] In Stock

PJA551A005

SENSOR

Notes: THI-R1(U-BEND), THI-R Show Image

[20] In Stock

PJA551A005AW

SENSOR

Notes: THI-R2(CAPILLARY) Show Image

[21] In Stock

PJA551A005AY

SENSOR

Notes: THI-R3(GAS HEADER) Show Image

[22] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R1,2,3 Show Image

[23-24] In Stock

PJR454A102A

PAN DRAIN

[24] In Stock

SSA326A003F

PLUG

Show Image

[25-26] In Stock

PJB433B001G

CASING

[26] Contact

RSA011H005B

LABEL,NOTICE

Contact

[27] Contact

PJR116A122A

FAN BRACKET

Contact

[28] In Stock

SSA431D089A

IMPELLER

[29] In Stock

PJR006A110G

MOTOR

Notes: 6002ZZ, Left Side - Twin shaft

[30] In Stock

PJB433A001

SHROUD

Show Image

[31] In Stock

PFA116A207B

BRACKET, MOTOR

Notes: RIGHT, LEFT Show Image

[32] In Stock

PFA116A207C

BRACKET, MOTOR

Notes: LEFT Show Image

[33] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

SKU: FDUMA90KXE4A HEAT EXCH. ASSY Category: Uncategorised
