FDUMA90KXE4A CONTROL AND PARTS SET

FDUMA90KXE4A CONTROL AND PARTS SET

Available Parts

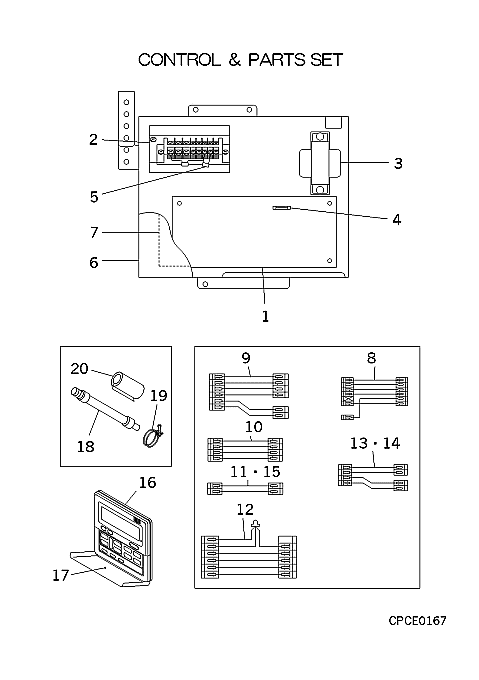

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJA505A138ZC PWB ASSY In Stock Show Image
  • [1-5] PJR501A137D   Contact   Contact
  • [2] SSA561B707DG BLOCK TERMI Contact Notes: TB   Contact
  • [3] SSA554A454 TRANSFORMER In Stock Notes: TR Show Image
  • [4] SSA564A116G FUSE(CURRENT) In Stock Notes: 3.15 AMP FUSE, F 3.15A Show Image
  • [5] PJA552F004 CAPACITOR A Contact   Contact
  • [6-7] PJR142A106BN LID ASSY,CO Contact   Contact
  • [7] PJR011G006 LABEL,WIRING Contact   Contact
  • [8] PJR504A240 HARNESS ASSY Contact Notes: CNG,EARTH CNS-FM CNF3   Contact
  • [9] PJR504A228B HARNESS ASSY Contact Notes: CNNZ-CNNZ,CNH2   Contact
  • [10] PJR504A226B HARNESS ASSY Contact Notes: CNRI1S-CNRI   Contact
  • [11] PJR504A234B HARNESS ASSY Contact Notes: CNN9-CNN4   Contact
  • [12] PJR504A238A HARNESS ASSY Contact Notes: SM CNA3S-CNA2   Contact
  • [13] PJR504A109 HARNESS ASSY Contact Notes: CNRI-FS CNL,DM CNR   Contact
  • [14] PJR504A232 HARNESS ASSY Contact Notes: CNN3-RHI-R1 CNN5,THI-R2 CNN6   Contact
  • [15] PJR504A231 HARNESS ASSY Contact Notes: CNN4-THI-R3 CNN7   Contact
  • [16-17] PJA502A700AC WALL CONTROLLER Out of Stock Substitute: RC-E1R Notes: RC-E1 / RC-E1R - 3 WIRE, X-Y-Z, RC-E1
  • [17] PJA129A708 COVER Z Contact   Contact
  • [18] SSA423A070 HOSE, DRAIN Out of Stock Substitute: PSA006A039 Show Image
  • [18-20] PJA006A317C INSTALLATION KIT Contact   Contact
  • [19] V300Y38 CLAMP In Stock Notes: CLAMP Show Image
  • [20] SSA153B016BA INSULATION,PIPE In Stock Show Image
  • [21] PJR011F018J   Contact   Contact
SKU: FDUMA90KXE4A CONTROL AND PARTS SET Category:
