FDUMA71KXE5R HEAT EXCH. AND FAN

FDUMA71KXE5R HEAT EXCH. AND FAN

Available Parts

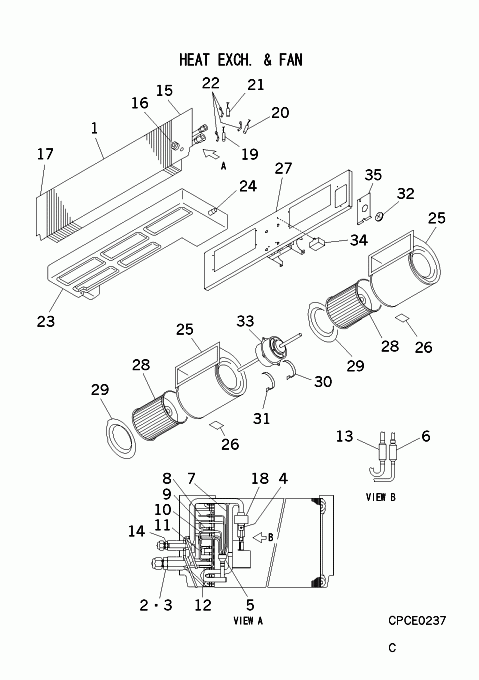

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJR311A126A HEAT EXCH(AIR) Contact   Contact
  • [1-22] PJR301A101A   Contact   Contact
  • [2-3] PJR315D113B HEADER ASSY,GAS Contact Notes: !   Contact
  • [3] SSA323F012C UNION,SOLDER Contact   Contact
  • [4] SSA387F047 VALVE EXPA In Stock Notes: EEV - VALVE BODY, SM Show Image
  • [5] SSA315A252D DISTRIBUTOR Contact   Contact
  • [5-12] PJR315A029 DISTRIBUTOR Contact   Contact
  • [6] SSA357A005T STRAINER In Stock
  • [7] PJR315B249 CAPILLARY(1) Contact Notes: !D2.2XD4.0 L290, !D2.2XD4.0 L290   Contact
  • [8] PJR315B250 CAPILLARY(2) Contact Notes: !D2.0XD4.0 L260, !D2.0XD4.0 L260   Contact
  • [9] PJR315B251 CAPILLARY(3) Contact Notes: !D2.4XD4.0 L220, !D2.4XD4.0 L220   Contact
  • [10] PJR315B252 CAPILLARY(4) Contact Notes: !D2.6XD4.0 L200, !D2.6XD4.0 L200   Contact
  • [11] PJR315B253 CAPILLARY(5) Contact Notes: !D2.6XD4.0 L190, !D2.6XD4.0 L190   Contact
  • [12] PJR315B254 CAPILLARY(6) Contact Notes: !D2.8XD4.0 L240, !D2.8XD4.0 L240   Contact
  • [13] SSA357A005B STRAINER In Stock Show Image
  • [14] SSA323F012A UNION Contact   Contact
  • [15-16] PJR141A104 PLATE BAFF Contact Notes: RIGHT   Contact
  • [16] S751W09 GROMMET Contact Notes: D13   Contact
  • [17] PJR141A105 PLATE BAFF Contact Notes: LEFT   Contact
  • [18] SSA382F228J COIL SOLENOID In Stock Notes: LENGTH 40CM, FOR SM
  • [19] PJA551A005 SENSOR In Stock Notes: THI-R, THI-R1(U-BEND) Show Image
  • [20] PJA551A005AW SENSOR In Stock Notes: THI-R2(CAPILLARY) Show Image
  • [21] PJA551A005AY SENSOR In Stock Notes: THI-R3(GAS HEADER) Show Image
  • [22] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR THI-R Show Image
  • [23-24] PJR454A303A PAN ASSY,DRAIN In Stock
  • [24] SSA326A003F PLUG In Stock Show Image
  • [25-26] PJR433B005C SCROLL ASSY Contact   Contact
  • [26] RSA011H005B LABEL,NOTICE Contact   Contact
  • [27] PJR116A206A BRACKET,FAN Contact   Contact
  • [28] SSA431D089A IMPELLER In Stock
  • [29] PJB433A001C SHROUD,SUCTION Contact Substitute: OUT OF PRODUCTION   Contact
  • [30] PFA116A207B BRACKET, MOTOR In Stock Substitute: PFA116A207G Notes: RIGHT Show Image
  • [31] PFA116A207C BRACKET, MOTOR In Stock Substitute: PFA116A207H Notes: LEFT Show Image
  • [32] S751W30X GROMMET V14 In Stock Notes: D35 Show Image
  • [33] SSA511T223 MOTOR,AC In Stock Notes: LEFT SIDE
  • [34] SSA552A849 CAPACITOR,RUNNING Contact Notes: 5MF 450VAC, 5MF 450VAC   Contact
  • [35] PJR132A105 LID Contact   Contact
SKU: FDUMA71KXE5R HEAT EXCH. AND FAN Category:
