FDUMA56KXE5R HEAT EXCH. AND FAN

Name: FDUMA56KXE5R HEAT EXCH. AND FAN
SKU: FDUMA56KXE5R HEAT EXCH. AND FAN
Availability: InStock

FDUMA56KXE5R HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

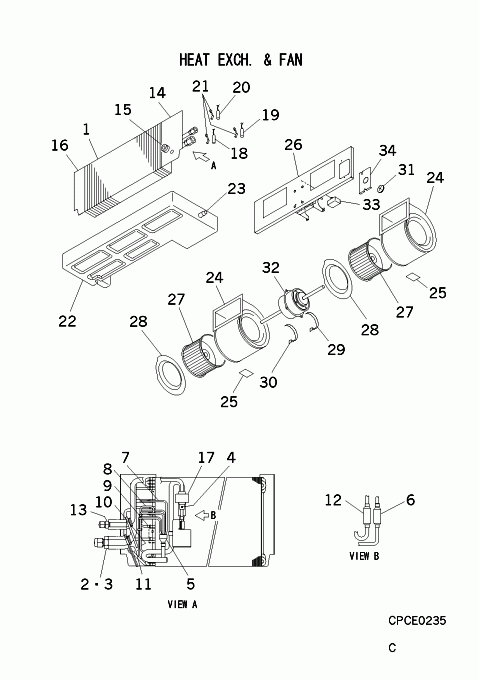

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJR311A126

HEAT EXCH(AIR)

Contact

[1-21] In Stock

PJR301A100G

HEAT EXCH

[2-3] Contact

PJR315D115A

HEADER ASSY,GAS

Contact

[3] Contact

SSA323F012G

UNION,SOLDER

Contact

[4] In Stock

SSA387F047

VALVE EXP

Notes: SM, EEV - VALVE BODY Show Image

[5] Contact

SSA315A252

DISTRIBUTOR

Contact

[6] In Stock

SSA357A059T

STRAINER

[7] Contact

PJR315B255

CAPILLARY(1)

Contact

Notes: !D2.4XD4.0 L220

[8] Contact

PJR315B256

CAPILLARY(2)

Contact

Notes: !D2.0XD4.0 L380

[9] Contact

PJR315B257

CAPILLARY(3)

Contact

Notes: !D2.6XD4.0 L220

[10] Contact

PJR315B258

CAPILLARY(4)

Contact

Notes: !D3.0XD4.0 L240

[11] Contact

PJR315B259

CAPILLARY(5)

Contact

Notes: !D2.4XD4.0 L280

[12] In Stock

SSA357A059B

STRAINER

[13] Contact

SSA323F075

UNION

Contact

[14-15] Contact

PJR141A104

PLATE BAFF

Contact

Notes: RIGHT

[15] Contact

S751W09

GROMMET

Contact

Notes: D13

[16] Contact

PJR141A105

PLATE BAFF

Contact

Notes: LEFT

[17] In Stock

SSA382F228J

COIL SOLENOID

Notes: FOR SM, LENGTH 40CM Show Image

[18] In Stock

PJA551A005

SENSOR

Notes: THI-R1(U-BEND), THI-R Show Image

[19] In Stock

PJA551A005AW

SENSOR

Notes: THI-R2(CAPILLARY) Show Image

[20] In Stock

PJA551A005AY

SENSOR

Notes: THI-R3(GAS HEADER) Show Image

[21] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[22-23] In Stock

PJR454A303

PAN ASSY,DRAIN

[23] In Stock

SSA326A003F

PLUG

Show Image

[24-25] Contact

PJR433B005B

SCROLL ASSY

Contact

Substitute: PJR433B007B

[25] Contact

RSA011H005B

LABEL,NOTICE

Contact

[26] Contact

PJR116A206

BRACKET,FAN

Contact

[27] In Stock

SSA431D089

IMPELLER

[28] Out of Stock

PJB433A001C

SHROUD,SUCTION

Substitute: OUT OF PRODUCTION

[29] In Stock

PFA116A207B

BRACKET, MOTOR

Notes: RIGHT, LEFT Show Image

[30] In Stock

PFA116A207C

BRACKET, MOTOR

Notes: LEFT Show Image

[31] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[32] Out of Stock

SSA511T221

FAN MOTOR

[33] In Stock

SSA552A260T

CAPACITOR

Notes: 4MF 500VAC

[34] Contact

PJR132A105

LID

Contact
