FDUMA56KXE4A HEAT EXCH. ASSY

FDUMA56KXE4A HEAT EXCH. ASSY

Available Parts

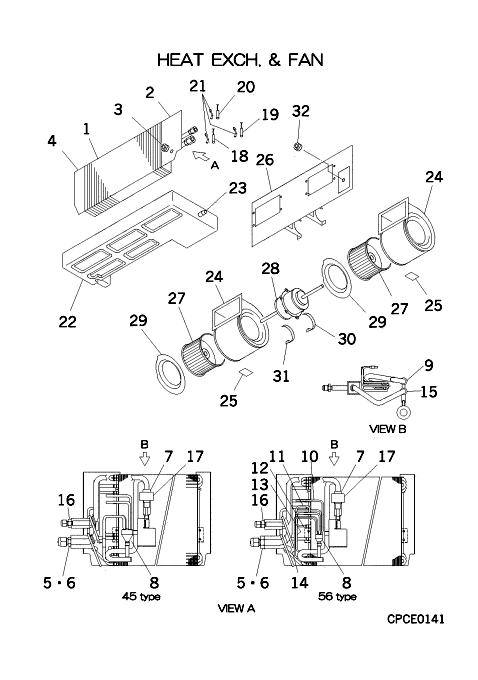

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJR311A126 HEAT EXCH(AIR) Contact   Contact
  • [1-17] PJR301A100 HEAT EXCH A In Stock
  • [2-3] PJR141A104 PLATE BAFF Contact Notes: RIGHT   Contact
  • [3] S751W09 GROMMET Contact Notes: D13   Contact
  • [4] PJR141A105 PLATE BAFF Contact Notes: LEFT   Contact
  • [5-6] PJR315D115A HEADER ASSY,GAS Contact   Contact
  • [6] SSA323F012G UNION,SOLDER Contact   Contact
  • [7] SSA387F036 EXP VALVE In Stock Notes: EEV(HEAT) OR EEVH1-EEVH2, SM Show Image
  • [8] SSA315A252 DISTRIBUTOR Contact   Contact
  • [8-14] PJR315A028 DISTRIBUTOR Contact   Contact
  • [9] SSA357A005T STRAINER In Stock
  • [10] PJR315B255 CAPILLARY(1) Contact Notes: !D2.4XD4.0 L220, !D2.4XD4.0 L220   Contact
  • [11] PJR315B256 CAPILLARY(2) Contact Notes: !D2.0XD4.0 L380, !D2.0XD4.0 L380   Contact
  • [12] PJR315B257 CAPILLARY(3) Contact Notes: !D2.6XD4.0 L220, !D2.6XD4.0 L220   Contact
  • [13] PJR315B258 CAPILLARY(4) Contact Notes: !D3.0XD4.0 L240, !D3.0XD4.0 L240   Contact
  • [14] PJR315B259 CAPILLARY(5) Contact Notes: !D2.4XD4.0 L280, !D2.4XD4.0 L280   Contact
  • [15] SSA357A005B STRAINER In Stock Show Image
  • [16] SSA323F075 UNION Contact   Contact
  • [17] SSA382F228J COIL SOLENOID In Stock Notes: LENGTH 40CM, FOR SM
  • [18] PJA551A005 SENSOR In Stock Notes: THI-R, THI-R1(U-BEND) Show Image
  • [19] PJA551A005AW SENSOR In Stock Notes: THI-R2(CAPILLARY) Show Image
  • [20] PJA551A005AY SENSOR In Stock Notes: THI-R3(GAS HEADER) Show Image
  • [21] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR THI-R1,2,3 Show Image
  • [22-23] PJR454A102 PAN DRAIN Contact   Contact
  • [23] SSA326A003F PLUG In Stock Show Image
  • [24-25] PJB433B001J CASING Contact   Contact
  • [25] RSA011H005B LABEL,NOTICE Contact   Contact
  • [26] PJR116A122 BRACKET FAN Contact   Contact
  • [27] SSA431D089 IMPELLER In Stock
  • [28] SSA511A349A MOTOR In Stock Notes: CAPACITOR ATTACHED TO MOTOR, 6201ZZ
  • [29] PJB433A001 SHROUD In Stock Show Image
  • [30] PFA116A207B BRACKET, MOTOR In Stock Substitute: PFA116A207G Notes: RIGHT Show Image
  • [31] PFA116A207C BRACKET, MOTOR In Stock Substitute: PFA116A207H Notes: LEFT Show Image
  • [32] S751W30X GROMMET V14 In Stock Notes: D35 Show Image
SKU: FDUMA56KXE4A HEAT EXCH. ASSY Category:
