FDUMA56KXE4A CABINET ASSY

FDUMA56KXE4A CABINET ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

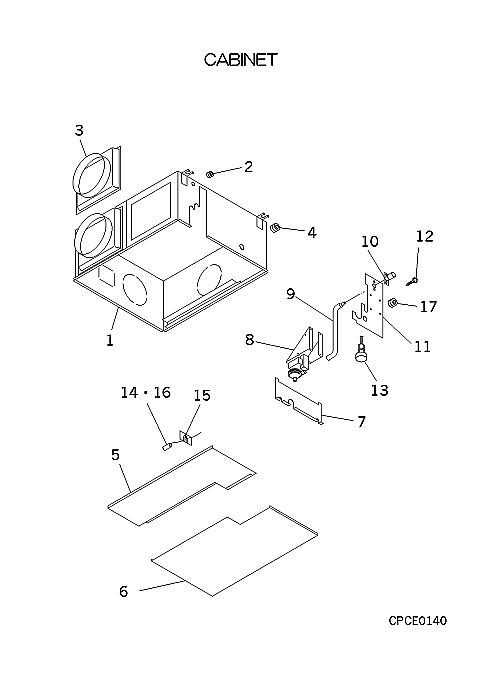

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] Contact
PJR100A106P
CABINET
Contact
[2] Contact
S751W09
GROMMET
Contact
Notes: D13
[3] In Stock
PJR438A102
JOINT DUCT
PJR438A102
[4] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[5] Contact
PJR111A101D
BOTTOM PLAT
Contact
Notes: FRONT
[6] Contact
PJR111A102
BOTTOM PLAT
Contact
Notes: REAR
[7] Contact
PJR132A101
LID
Contact
[8] Out of Stock
PJR451A111A
PUMP ASSY
Substitute: PJR451A110A
[8-12] Out of Stock
PJR451A110B
PUMP,DRAIN
[9] Contact
SSA423A081
HOSE DRAIN
Contact
[10] In Stock
SSA422C078A
SOCKET
[11] Contact
PJR132A100A
LID
Contact
[12] Contact
SSA913D006
SCREW
Contact
Notes: 4X8, 1pc ONLY
[13] In Stock
SSA536A017C
SWITCH,FLOAT
Notes: FS Show Image
SSA536A017C
[14] In Stock
PJA551A010
SENSOR ASSY
Notes: THI-A Show Image
PJA551A010
[15] Contact
SSA947B010
GROMMET
Contact
[16] Contact
SSA937C290
CLIP
Contact
Notes: FOR THI-A
[17] In Stock
S751W30
GROMMET
Notes: D35 Show Image
S751W30
[18] In Stock
PSA006A039
HOSE SET, DRAIN
Notes: SEE SECTION
[19] In Stock
V300Y38
CLAMP
Notes: SEE SECTION , CLAMP Show Image
V300Y38
