FDUMA45KXE5R CABINET ASSY

FDUMA45KXE5R CABINET ASSY

Available Parts

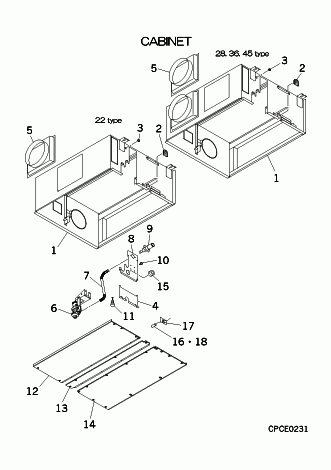

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-3] PJR100A115A CABINET ASSY Contact   Contact
  • [2] SSA947B027A GROMMET Contact   Contact
  • [3] S751W09 GROMMET Contact Notes: D13   Contact
  • [4] PJR132A101D LID Contact   Contact
  • [5] PJR438A102 JOINT DUCT In Stock Show Image
  • [6] PJA451A510A DRAIN PUMP In Stock Show Image
  • [6-10] PJR451A300 PUMP ASSY,DRAIN Contact   Contact
  • [7] SSA423A092A HOSE,DRAIN In Stock Show Image
  • [8] PJR132A119 LID Contact   Contact
  • [9] SSA422C088 SOCKET Out of Stock Notes: LENGTH 11.5CM Show Image
  • [10] SSA913D006 SCREW Contact Notes: 1PC ONLY, 4X8   Contact
  • [11] SSA536A017T SWITCH, FLOAT In Stock Notes: LENGTH 66.5CM, FS
  • [12] PJR111A117 PLATE ASSY,BOTTOM Contact   Contact
  • [13] PJR111A119 PLATE ASSY,BOTTOM( Contact   Contact
  • [14] PJR111A118 PLATE ASSY,BOTTOM( Contact   Contact
  • [15] S751W30 GROMMET In Stock Notes: D35 Show Image
  • [16] PJA551A010A SENSOR ASY In Stock Notes: THI-A Show Image
  • [16-18] PJR551A001D SENSOR(TEMPERATURE Contact   Contact
  • [17] SSA947B010 GROMMET Contact   Contact
  • [18] SSA937C290 CLIP Contact Notes: FOR THI-A   Contact
  • [19] SSA423A070 HOSE, DRAIN Out of Stock Substitute: PSA006A039 Notes: SEE SECTION Show Image
  • [20] V300Y38 CLAMP In Stock Notes: CLAMP, SEE SECTION Show Image
