FDUMA45KXE4A HEAT EXCH. ASSY

Name: FDUMA45KXE4A HEAT EXCH. ASSY
SKU: FDUMA45KXE4A HEAT EXCH. ASSY
Availability: InStock

FDUMA45KXE4A HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

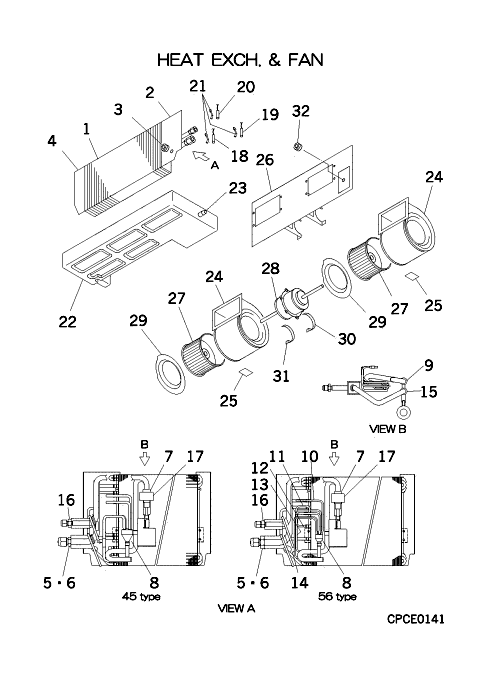

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJR311A132A

HEAT EXCH(AIR)

Contact

[1-17] Contact

PJR301A100C

HEAT EXCH

Contact

[2-3] Contact

PJR141A104

PLATE BAFF

Contact

Notes: RIGHT

[3] Contact

S751W09

GROMMET

Contact

Notes: D13

[4] Contact

PJR141A105

PLATE BAFF

Contact

Notes: LEFT

[5-6] Contact

PJR315D115D

HEADER ASSY,GAS

Contact

[6] Contact

SSA323F012G

UNION,SOLDER

Contact

Notes: GAS

[7] In Stock

SSA387F036

EXP VALVE

Notes: EEV, EEV(HEAT) or EEVH1-EEVH2 Show Image

[8] Contact

SSA315A255A

DISTRIBUTOR

Contact

[8-9] Contact

PJR315A028C

DISTRIBUTOR

Contact

[9] In Stock

SSA357A059T

STRAINER

[15] In Stock

SSA357A059B

STRAINER

[16] Contact

SSA323F075

UNION

Contact

Notes: LIQ.

[17] In Stock

SSA382F228J

COIL SOLENOID

Notes: FOR SM, LENGTH 40CM Show Image

[18] In Stock

PJA551A005

SENSOR

Notes: THI-R Show Image

[19] In Stock

PJA551A005AW

SENSOR

Notes: THI-R2(CAPILLARY) Show Image

[20] In Stock

PJA551A005AY

SENSOR

Notes: THI-R3(GAS HEADER) Show Image

[21] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[22-23] Contact

PJR454A102

PAN DRAIN

Contact

[23] In Stock

SSA326A003F

PLUG

Show Image

[24-25] Contact

PJB433B001J

CASING

Contact

[25] Contact

RSA011H005B

LABEL,NOTICE

Contact

[26] Contact

PJR116A122

BRACKET FAN

Contact

[27] In Stock

SSA431D089

IMPELLER

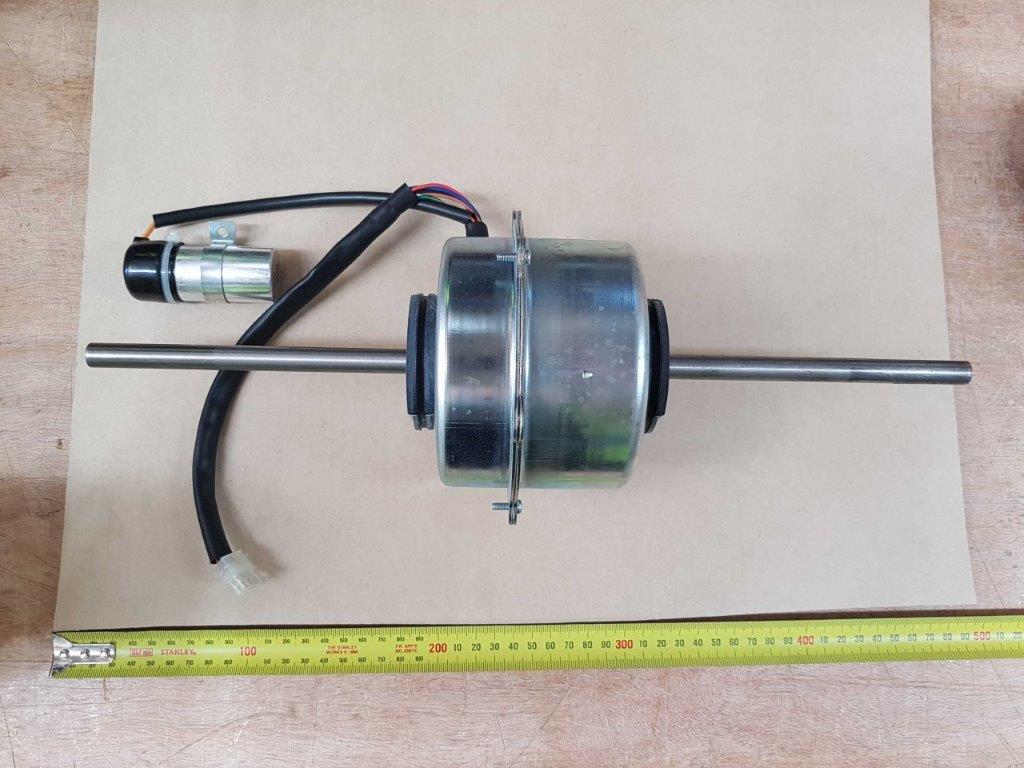

[28] In Stock

SSA511A349A

MOTOR

Notes: COMES WITH CAPACITOR Show Image

[29] In Stock

PJB433A001

SHROUD

Show Image

[30] In Stock

PFA116A207B

BRACKET, MOTOR

Notes: RIGHT, LEFT Show Image

[31] In Stock

PFA116A207C

BRACKET, MOTOR

Notes: LEFT Show Image

[32] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image
