FDUMA36KXE5R HEAT EXCH. AND FAN

FDUMA36KXE5R HEAT EXCH. AND FAN

Available Parts

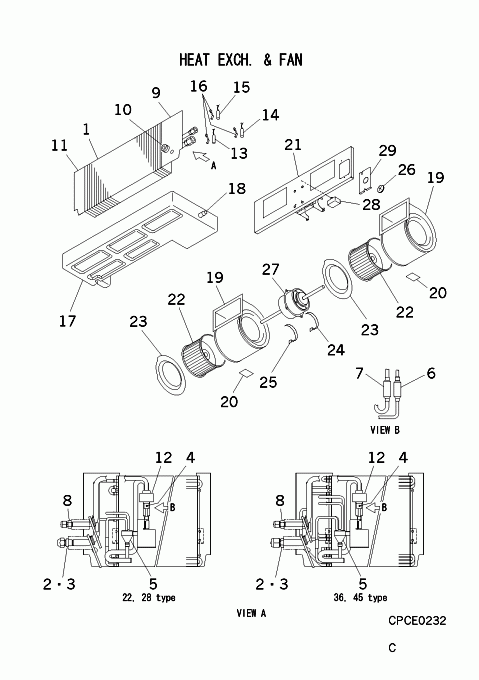

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJR311A132A HEAT EXCH(AIR) Contact   Contact
  • [1-16] PJR301A100F HEAT EXCH ASSY(AIR Out of Stock
  • [2-3] PJR315D115D HEADER ASSY,GAS Contact   Contact
  • [3] SSA323F012G UNION,SOLDER Contact   Contact
  • [4] SSA387F047 VALVE EXPA In Stock Notes: EEV - VALVE BODY, SM Show Image
  • [5] SSA315A255A DISTRIBUTOR Contact   Contact
  • [5-6] PJR315A028C DISTRIBUTOR Contact   Contact
  • [6] SSA357A005T STRAINER In Stock
  • [7] SSA357A005B STRAINER In Stock Show Image
  • [8] SSA323F075 UNION Contact   Contact
  • [9-10] PJR141A104 PLATE BAFF Contact Notes: RIGHT   Contact
  • [10] S751W09 GROMMET Contact Notes: D13   Contact
  • [11] PJR141A105 PLATE BAFF Contact Notes: LEFT   Contact
  • [12] SSA382F228J COIL SOLENOID In Stock Notes: LENGTH 40CM, FOR SM
  • [13] PJA551A005 SENSOR In Stock Notes: THI-R, THI-R1(U-BEND) Show Image
  • [14] PJA551A005AW SENSOR In Stock Notes: THI-R2(CAPILLARY) Show Image
  • [15] PJA551A005AY SENSOR In Stock Notes: THI-R3(GAS HEADER) Show Image
  • [16] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR THI-R Show Image
  • [17-18] PJR454A303 PAN ASSY,DRAIN In Stock
  • [18] SSA326A003F PLUG In Stock Show Image
  • [19-20] PJR433B005B SCROLL ASSY Contact Substitute: PJR433B007B   Contact
  • [20] RSA011H005B LABEL,NOTICE Contact   Contact
  • [21] PJR116A206 BRACKET,FAN Contact   Contact
  • [22] SSA431D089 IMPELLER In Stock
  • [23] PJB433A001C SHROUD,SUCTION Contact Substitute: OUT OF PRODUCTION   Contact
  • [24] PFA116A207B BRACKET, MOTOR In Stock Substitute: PFA116A207G Notes: RIGHT Show Image
  • [25] PFA116A207C BRACKET, MOTOR In Stock Substitute: PFA116A207H Notes: LEFT Show Image
  • [26] S751W30X GROMMET V14 In Stock Notes: D35 Show Image
  • [27] SSA511T221 FAN MOTOR In Stock
  • [28] SSA552A848 CAPACITOR,RUNNING Contact Notes: 4MF 500VAC, 4MF 500VAC   Contact
  • [29] PJR132A105 LID Contact   Contact
SKU: FDUMA36KXE5R HEAT EXCH. AND FAN Category:
