FDUMA202R HEAT EXCH. AND FAN

FDUMA202R HEAT EXCH. AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

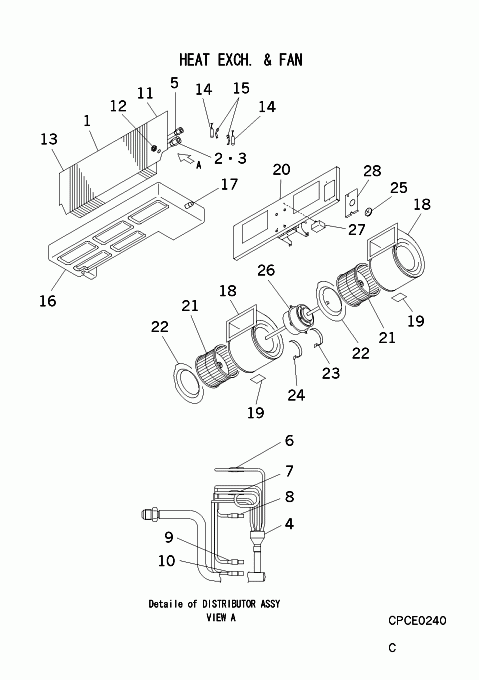

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJR311A126
HEAT EXCH(AIR)
Contact
[1-15] In Stock
PJR311A125C
HEAT EXCH
[2-3] Contact
PJR315D115
Contact
[3] Contact
SSA323F012G
UNION,SOLDER
Contact
[4] Contact
SSA315A252
DISTRIBUTOR
Contact
[4-10] Contact
PJR315A027
DISTRI ASSY
Contact
[5] Contact
SSA323F075
UNION
Contact
[6] Contact
PJR315B255
CAPILLARY(1)
Contact
Notes: !D2.4XD4.0 L220
[7] Contact
PJR315B256
CAPILLARY(2)
Contact
Notes: !D2.0XD4.0 L380
[8] Contact
PJR315B257
CAPILLARY(3)
Contact
Notes: !D2.6XD4.0 L220
[9] Contact
PJR315B258
CAPILLARY(4)
Contact
Notes: !D3.0XD4.0 L240
[10] Contact
PJR315B259
CAPILLARY(5)
Contact
Notes: !D2.4XD4.0 L280
[11-12] Contact
PJR141A104
PLATE BAFF
Contact
Notes: RIGHT
[12] Contact
S751W09
GROMMET
Contact
Notes: D13
[13] Contact
PJR141A105
PLATE BAFF
Contact
Notes: LEFT
[14] In Stock
PJA551A005
SENSOR
Notes: THI-R Show Image
PJA551A005
[15] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[16-17] In Stock
PJR454A303
PAN ASSY,DRAIN
[17] In Stock
SSA326A003F
PLUG
Show Image
SSA326A003F
[18-19] Contact
PJR433B005B
SCROLL ASSY
Contact
Substitute: PJR433B007B
[19] Contact
RSA011H005B
LABEL,NOTICE
Contact
[20] Contact
PJR116A206
BRACKET,FAN
Contact
[21] In Stock
SSA431D089
IMPELLER
[22] Out of Stock
PJB433A001C
SHROUD,SUCTION
Substitute: OUT OF PRODUCTION
[23] In Stock
PFA116A207B
BRACKET, MOTOR
Notes: RIGHT, LEFT Show Image
PFA116A207B
[24] In Stock
PFA116A207C
BRACKET, MOTOR
Notes: LEFT Show Image
PFA116A207C
[25] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[26] Out of Stock
SSA511T221
FAN MOTOR
[27] In Stock
SSA552A260T
CAPACITOR
Notes: 4MF 500VAC
[28] Contact
PJR132A105
LID
Contact
