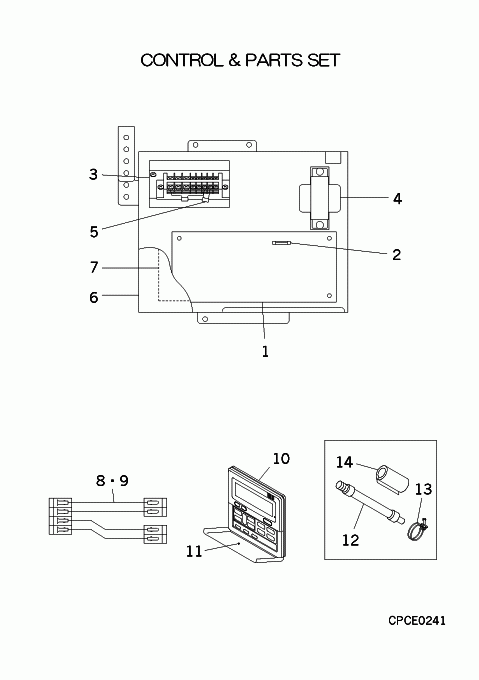

FDUMA202R CONTROL AND PARTS SET

FDUMA202R CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] Out of Stock
PJA505A131ZC
PWB ASSY
Substitute: OUT OF PRODUCTION Show Image
PJA505A131ZC
[1-5] Contact
PJR501A300
CONTROL UNIT
Contact
[2] In Stock
SSA564A116G
FUSE(CURRENT)
Notes: F 3.15A, 3.15 AMP FUSE Show Image
SSA564A116G
[3] Contact
SSA561B716FD
BLOCK,TERMINAL
Contact
Notes: TB
[4] In Stock
SSA554A358AA
TRANSFORMER
Notes: TR Show Image
SSA554A358AA
[5] Contact
PJA552F004
CAPACITOR A
Contact
[6-7] Contact
PJR142A128H
LID ASSY,CONTROL B
Contact
[7] Contact
PJR011G300
LABEL,WIRING
Contact
[8] Contact
PJR504A305
HARNESS ASSY
Contact
Notes: CNRI-CNR,CNI
[9] Contact
PJR504A221
HARNESS ASSY
Contact
Notes: CNN2-CNN3,CNN4
[10-11] Out of Stock
PJA502A700AC
WALL CONTROLLER
Substitute: RC-E1R Notes: RC-E1R, RC-E1 / RC-E1R - 3 WIRE, X-Y-Z
[11] Contact
PJA129A708
COVER Z
Contact
[12] In Stock
PSA006A039
HOSE SET, DRAIN
[12-14] Out of Stock
PJA006A317
PARTS SET
Notes: INCL.CLAMP,HOSE INSULATION SET HOSE,DRAIN
[13] In Stock
V300Y38
CLAMP
Notes: CLAMP Show Image
V300Y38
[14] In Stock
SSA153B016BA
INSULATION,PIPE
Show Image
SSA153B016BA
[15] Contact
PJR011F300A
Contact
SKU: FDUMA202R CONTROL AND PARTS SET Category:
