FDUMA140KXE4A HEAT EXCH. ASSY

FDUMA140KXE4A HEAT EXCH. ASSY

Available Parts

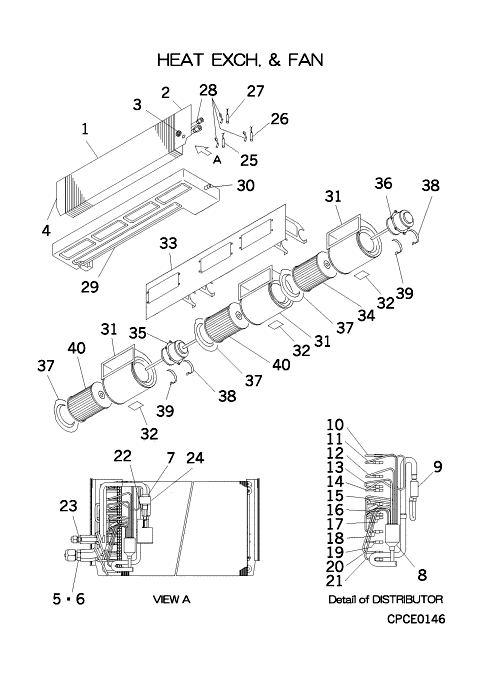

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJR311A127 HEAT EXCH(AIR) Contact   Contact
  • [1-24] PJR301A102 HEAT EXCH A Contact   Contact
  • [2-3] PJR141A100 PLATE BAFF Contact Notes: RIGHT   Contact
  • [3] S751W09 GROMMET Contact Notes: D13   Contact
  • [4] PJR141A101 PLATE BAFF Contact Notes: LEFT   Contact
  • [5-6] PJR315D111B HEADER ASSY,GAS Contact   Contact
  • [6] SSA323F012C UNION,SOLDER Contact   Contact
  • [7] SSA387F036 EXP VALVE In Stock Notes: EEV(HEAT) OR EEVH1-EEVH2, SM Show Image
  • [8] PJA315A703F DISTRI Z Contact   Contact
  • [8-21] PJR315A030 DISTRIBUTOR Contact   Contact
  • [9] SSA357A005T STRAINER In Stock
  • [10] PJR315B237 CAPILLARY(1) Contact Notes: !D2.0XD3.2 L500, !D2.0XD3.2 L500   Contact
  • [11] PJR315B238 CAPILLARY(2) Contact Notes: !D2.0XD3.2 L310, !D2.0XD3.2 L310   Contact
  • [12] PJR315B239 CAPILLARY(3) Contact Notes: !D2.6XD4.0 L270, !D2.6XD4.0 L270   Contact
  • [13] PJR315B240 CAPILLARY(4) Contact Notes: !D2.2XD4.0 L250, !D2.2XD3.2 L250   Contact
  • [14] PJR315B241 CAPILLARY(5) Contact Notes: !D2.6XD4.0 L230, !D2.6XD4.0 L230   Contact
  • [15] PJR315B242 CAPILLARY(6) Contact Notes: !D2.6XD4.0 L190, !D2.6XD4.0 L190   Contact
  • [16] PJR315B243 CAPILLARY(7) Contact Notes: !D2.6XD4.0 L200, !D2.6XD4.0 L200   Contact
  • [17] PJR315B244 CAPILLARY(8) Contact Notes: !D2.6XD4.0 L160, !D2.6XD4.0 L160   Contact
  • [18] PJR315B245 CAPILLARY(9) Contact Notes: !D2.2XD3.2 L180, !D2.2XD3.2 L180   Contact
  • [19] PJR315B246 CAPILLARY(10) Contact Notes: !D2.2XD3.2 L210, !D2.2XD3.2 L210   Contact
  • [20] PJR315B247 CAPILLARY(11) Contact Notes: !D2.2XD3.2 L220, !D2.2XD3.2 L220   Contact
  • [21] PJR315B248 CAPILLARY(12) Contact Notes: !D3.0XD4.0 L230, !D3.0XD4.0 L230   Contact
  • [22] SSA357A005B STRAINER In Stock Show Image
  • [23] SSA323F012A UNION Contact   Contact
  • [24] SSA382F228J COIL SOLENOID In Stock Notes: LENGTH 40CM, FOR SM
  • [25] PJA551A005 SENSOR In Stock Notes: THI-R, THI-R1 Show Image
  • [26] PJA551A005AW SENSOR In Stock Notes: THI-R2 Show Image
  • [27] PJA551A005AY SENSOR In Stock Notes: THI-R3 Show Image
  • [28] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR THI-R1,2,3 Show Image
  • [29-30] PJR454A100 PAN DRAIN In Stock
  • [30] SSA326A003F PLUG In Stock Show Image
  • [31-32] PJB433B001G CASING In Stock
  • [32] RSA011H005B LABEL,NOTICE Contact   Contact
  • [33] PJR116A102 FAN BRACKET Contact   Contact
  • [34] SSA431D089B IMPELLER In Stock Notes: RIGHT
  • [35] SSA511A351C MOTOR Contact Substitute: SSA511A694C Notes: DOUBLE SHAFT, 6002ZZ LEFT   Contact
  • [36] PJR006A110L PARTS SET(MOTOR) In Stock Notes: RIGHT HAND SIDE FAN MOTOR, 6201ZZ RIGHT
  • [37] PJB433A001 SHROUD In Stock Show Image
  • [38] PFA116A207B BRACKET, MOTOR In Stock Substitute: PFA116A207G Notes: RIGHT Show Image
  • [39] PFA116A207C BRACKET, MOTOR In Stock Substitute: PFA116A207H Notes: LEFT Show Image
  • [40] SSA431D089A IMPELLER In Stock Notes: CENTER,LEFT
SKU: FDUMA140KXE4A HEAT EXCH. ASSY Category:
