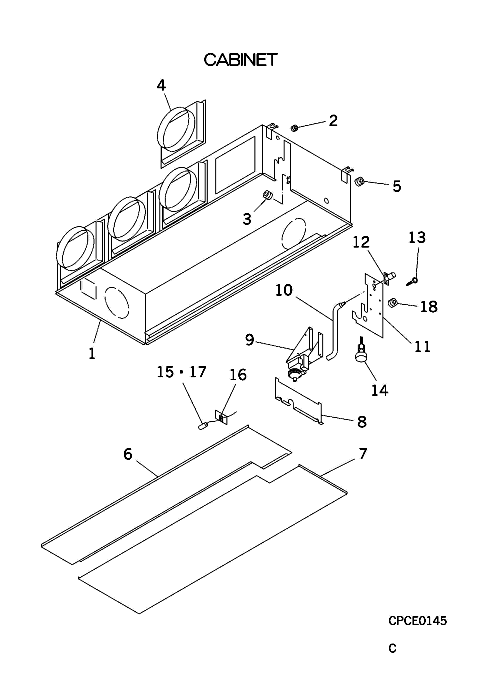

FDUMA140KXE4A CABINET ASSY

FDUMA140KXE4A CABINET ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] Contact
PJR100A107D
CABINET ASY
Contact
[2] Contact
S751W09
GROMMET
Contact
Notes: D13
[3] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[4] In Stock
PJR438A102
JOINT DUCT
Show Image
PJR438A102
[5] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[6] Contact
PJR111A101C
BOTTOM PLAT
Contact
Notes: FRONT
[7] Contact
PJR111A102B
BOTTOM PLAT
Contact
Notes: REAR
[8] Contact
PJR132A101
LID
Contact
[9] Out of Stock
PJR451A111A
PUMP ASSY
Substitute: PJR451A110A
[9-13] Out of Stock
PJR451A110B
PUMP,DRAIN
[10] Contact
SSA423A081
HOSE DRAIN
Contact
[11] Contact
PJR132A100A
LID
Contact
[12] In Stock
SSA422C078A
SOCKET
[13] Contact
SSA913D006
SCREW
Contact
Notes: 4X8, 1pc ONLY
[14] In Stock
SSA536A017C
SWITCH,FLOAT
Notes: FS Show Image
SSA536A017C
[15] In Stock
PJA551A010
SENSOR ASSY
Notes: THI-A Show Image
PJA551A010
[16] Contact
SSA947B010
GROMMET
Contact
[17] Contact
SSA937C290
CLIP
Contact
Notes: FOR THI-A
[18] In Stock
S751W30
GROMMET
Notes: D35 Show Image
S751W30
[19] In Stock
PSA006A039
HOSE SET, DRAIN
Notes: SEE SECTION
[20] In Stock
V300Y38
CLAMP
Notes: SEE SECTION, CLAMP Show Image
V300Y38
