FDUM71VF/B CONTROL AND PARTS SET

FDUM71VF/B CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

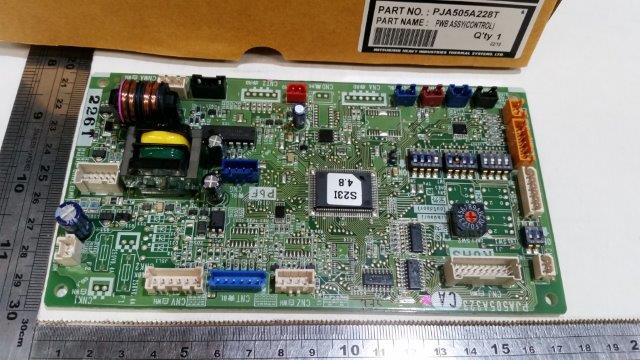

PJA505A228T
PWB ASSY (CONTROL)
Notes: ONLY FOR SUPPLY PARTS, CONTROL Show Image
PJA505A228T
[1-8] Contact
PJG501A007AL
CONTROL UNIT
Contact
Notes: !, NOT AVAILABLE
[2] In Stock
PJA505A331AG
PWB ASSY (POWER)
Notes: ONLY FOR SUPPLY PARTS
[3] In Stock
SSA561B702
BLOCK,TERMINAL
Notes: TB1 Show Image
SSA561B702
[4] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[5] In Stock
PSA551A001CG
SENSOR ASSY
Notes: THI-A Show Image
PSA551A001CG
[6] In Stock
PJG504A001
WIRING(PWB)
Notes: CNW2 PWB- CNW1 PWB, CNW2- CNW1
[7] Contact
PJF504A006C
WIRING(TB,XY)
Contact
Notes: TB2 X,TB2 Y- CNB PWB, TB2 X,TB2 Y-CNB PWB
[8] Contact
PJG504A002
WIRING(TB,POWER)
Contact
Notes: CONT E,TB1 1,TB1 2,TB1 3- CNWO PWB,CNW3 PWB, CONT E,TB1 1,TB1 2,TB1 3- CNW0,CNW3
[9] Contact
PJG142A003
LID ASSY,CONTROL B
Contact
[10] Contact
PJG011G004
LABEL,WIRING
Contact
Notes: !
[11] Contact
PJZ502A024AB
Advanced Wired Remote
Contact
Notes: RC-EX1A, SALES ITEM - ECO TOUCH
[12] In Stock
SSA423A101
HOSE,DRAIN
Show Image
SSA423A101
[12-14] In Stock
PJF008A001D
PARTS SET
[13] In Stock
V300Y38
CLAMP
Notes: CLAMP Show Image
V300Y38
[14] In Stock
SSA153B016BA
INSULATION,PIPE
Show Image
SSA153B016BA
[15] Contact
PJG011F007BH
LABEL,MODEL NAME
Contact
Notes: !
SKU: FDUM71VF/B CONTROL AND PARTS SET Category:
