FDUM71KXE6D HEAT EXCH. AND FAN

Name: FDUM71KXE6D HEAT EXCH. AND FAN
SKU: FDUM71KXE6D HEAT EXCH. AND FAN
Availability: InStock

FDUM71KXE6D HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

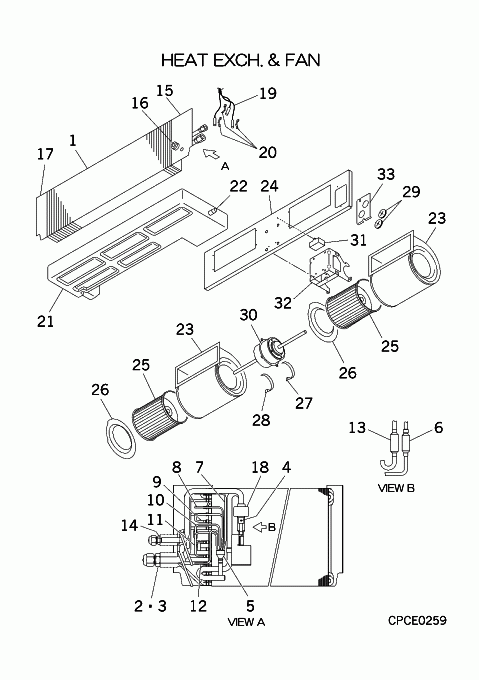

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJR311A126A

HEAT EXCH(AIR)

Contact

[1-20] In Stock

PJR301A101D

HEAT EXCH ASSY(AIR)

[2-3] Contact

PJR315D113C

HEADER ASSY,GAS

Contact

[3] Contact

SSA323F012C

UNION,SOLDER

Contact

[4] In Stock

SSA387F047

VALVE EXP

Notes: EEVH or SM, EEV - VALVE BODY Show Image

[5] Contact

SSA315A252D

DISTRIBUTOR

Contact

[5-12] Contact

PJR315A029

DISTRIBUTOR

Contact

[6] In Stock

SSA357A059T

STRAINER

[7] Contact

PJR315B249

CAPILLARY(1)

Contact

Notes: !D2.2XD4.0 L290

[8] Contact

PJR315B250

CAPILLARY(2)

Contact

Notes: !D2.0XD4.0 L260

[9] Contact

PJR315B251

CAPILLARY(3)

Contact

Notes: !D2.4XD4.0 L220

[10] Contact

PJR315B252

CAPILLARY(4)

Contact

Notes: !D2.6XD4.0 L200

[11] Contact

PJR315B253

CAPILLARY(5)

Contact

Notes: !D2.6XD4.0 L190

[12] Contact

PJR315B254

CAPILLARY(6)

Contact

Notes: !D2.8XD4.0 L240

[13] In Stock

SSA357A059B

STRAINER

[14] Contact

SSA323F012A

UNION

Contact

[15-16] Contact

PJR141A104

PLATE BAFF

Contact

Notes: RIGHT

[16] Contact

S751W09

GROMMET

Contact

Notes: D13

[17] Contact

PJR141A105

PLATE BAFF

Contact

Notes: LEFT

[18] In Stock

SSA382F210AW

SOLENOID COIL (EEV)

Notes: FOR SM

[19] In Stock

PSA551A010B

SENSOR ASSY(TEMP)

Notes: THI-R1,2,3 Show Image

[20] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[21-22] In Stock

PJR454A303A

PAN ASSY,DRAIN

[22] In Stock

SSA326A003F

PLUG

Show Image

[23] In Stock

PJR433B007A

SCROLL ASSY

[24] Contact

PJR116A206C

BRACKET,FAN

Contact

[25] In Stock

SSA431D089A

IMPELLER

[26] Out of Stock

PJB433A001C

SHROUD,SUCTION

Substitute: OUT OF PRODUCTION

[27] In Stock

PFA116A207B

BRACKET, MOTOR

Notes: RIGHT, LEFT Show Image

[28] In Stock

PFA116A207C

BRACKET, MOTOR

Notes: LEFT Show Image

[29] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[30] In Stock

SSA511T223

MOTOR,AC

Notes: LEFT, left side

[31] In Stock

SSA552A849

CAPACITOR,RUNNING

Notes: 5MF 450VAC

[32] Contact

PJR116A211

BRACKET(MOTOR)

Contact

[33] Contact

PJR132A105A

LID

Contact
