FDUM71KXE6D CABINET ASSY

FDUM71KXE6D CABINET ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

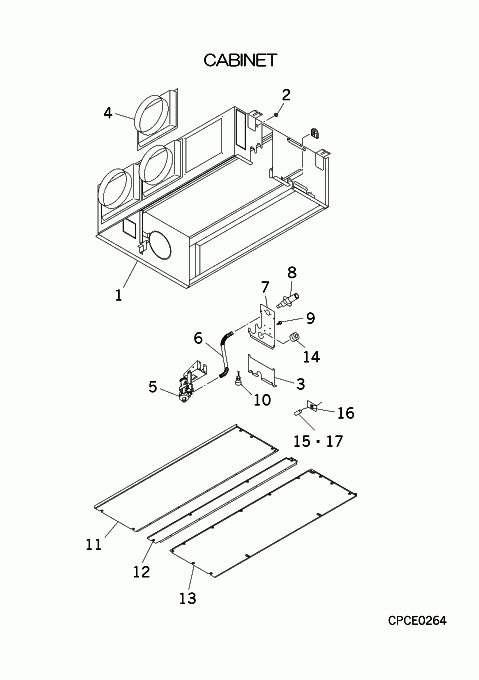

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] Contact
PJR100A115B
CABINET ASSY
Contact
[2] Contact
S751W09
GROMMET
Contact
Notes: D13
[3] In Stock
PJR132A101D
LID
[5] In Stock
PJA451A510M
DRAIN PUMP
Show Image
PJA451A510M
[5-9] In Stock
PJR451A300A
PUMP ASSY,DRAIN
[6] In Stock
SSA423A092A
HOSE,DRAIN
Show Image
SSA423A092A
[7] In Stock
PJR132A119
LID
[8] In Stock
SSA422C088
SOCKET
Notes: LENGTH 11.5CM Show Image
SSA422C088
[9] Contact
SSA913D006
SCREW
Contact
Notes: 4X8, 1pc ONLY
[10] In Stock
SSA536A029F
FLOAT SWITCH
Notes: FS Show Image
SSA536A029F
[11] Contact
PJR111A117A
PLATE ASSY,BOTTOM
Contact
[12] Contact
PJR111A119A
PLATE ASSY,BOTTOM(
Contact
[13] Contact
PJR111A118A
PLATE ASSY,BOTTOM(
Contact
[14] In Stock
S751W30
GROMMET
Notes: D35 Show Image
S751W30
[15] In Stock
PSA551A008D
SENSOR ASSY
Notes: THI-A Show Image
PSA551A008D
[15-17] Contact
PJR551A001F
SENSOR(TEMPERATURE
Contact
[16] Contact
SSA947B010
GROMMET
Contact
Notes: 10X10
[17] Contact
SSA937C290
CLIP
Contact
Notes: FOR THI-A
[18] In Stock
SSA423A101
HOSE,DRAIN
Show Image
SSA423A101
[19] In Stock
V300Y38
CLAMP
Notes: CLAMP Show Image
V300Y38
