FDUM631HKXE PANEL ASSY

FDUM631HKXE PANEL ASSY

Available Parts

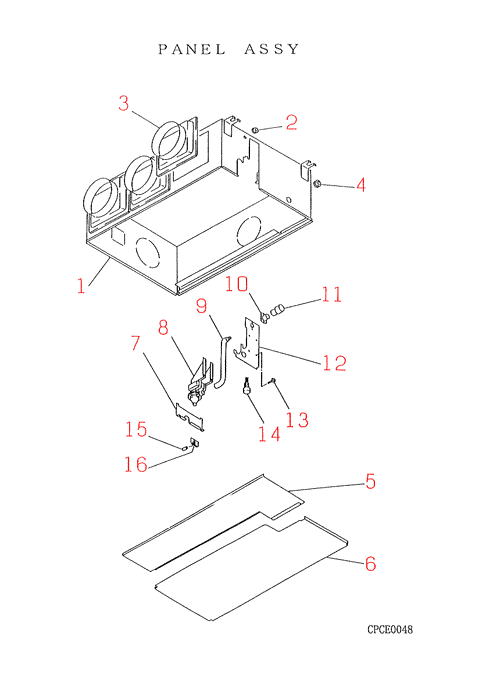

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-2] PJR100A106C   Contact   Contact
  • [2] S751W09 GROMMET Contact   Contact
  • [3] PJR438A102 JOINT DUCT In Stock Show Image
  • [4] S751W30X GROMMET V14 In Stock Show Image
  • [5] PJR111A101F BOTTOM PLAT Contact   Contact
  • [6] PJR111A102A BOTTOM PLAT Contact   Contact
  • [7] PJR132A101 LID Contact   Contact
  • [8] PJR451A101A PUMP DRAIN Contact   Contact
  • [9] SSA423A051A HOSE DRAIN Contact   Contact
  • [10] SSA422C039 SOCKET Contact   Contact
  • [11] PJA129A103 SOCKET In Stock Substitute: PJA129A103C Show Image
  • [12] PJR132A100A LID Contact   Contact
  • [13] SSA913D006 SCREW Contact Notes: 1PC ONLY   Contact
  • [14] SSA536A017C SWITCH,FLOT In Stock Substitute: SSA536A001F Notes: FS Show Image
  • [15] SSA551A056R SENSOR ASY Contact Notes: THI-A, THI-A   Contact
  • [16] SSA947B010 GROMMET Contact   Contact
SKU: FDUM631HKXE PANEL ASSY Category:
