FDUM60VH/1 CONTROL AND PARTS SET

FDUM60VH/1 CONTROL AND PARTS SET

Available Parts

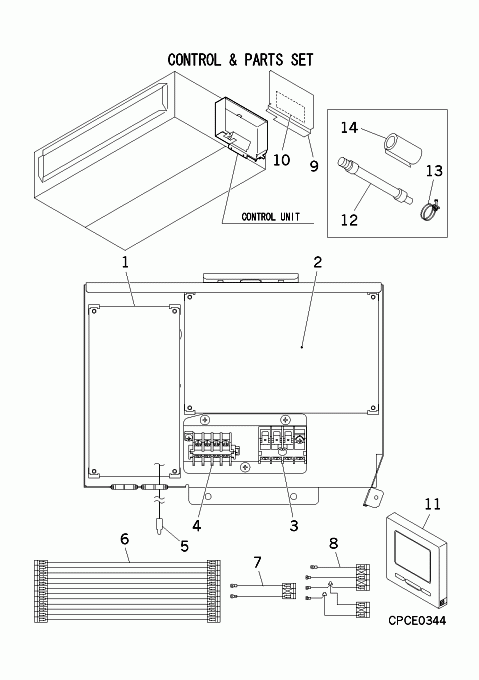

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJA505A228NF PWB ASSY(CONTROL) In Stock Substitute: PJA505A228PV Notes: ONLY FOR SUPPLY PARTS
  • [1-8] PJG501A024BJ CONTROL UNIT Contact Notes: !   Contact
  • [2] PJA505A331AB PWB ASSY (POWER) In Stock Substitute: PJA505A331AG Notes: ONLY FOR SUPPLY PARTS Show Image
  • [3] SSA561B702 BLOCK,TERMI In Stock Notes: TB1 Show Image
  • [4] SSA561B720A BLOCK,TERMINAL In Stock Notes: TB2, TB2 Show Image
  • [5] PSA551A001CG SENSOR ASSY In Stock Notes: THI-A, THI-A Show Image
  • [6] PJG504A001 WIRING(PWB) Contact Notes: CNW2- CNW1, CNW2 PWB- CNW1 PWB   Contact
  • [7] PJF504A006K WIRING(TB,XY) In Stock Notes: TB2 X,TB2 Y- CNB PWB, TB2 X,TB2 Y- CNB PWB
  • [8] PJG504A002 WIRING(TB,POWER) Contact Notes: CONT E,TB1 1,TB1 2,TB1 3- CNW0,CNW3, CONT E,TB1 1,TB1 2,TB1 3- CNW0 PWB,CNW3 PWB   Contact
  • [9] PJG142A003 LID ASSY,CONTROL B Contact   Contact
  • [10] PJG011G022 LABEL,WIRING Contact Notes: !   Contact
  • [11] PJZ502A031AC ADVANCED WIRED REMOTE Contact Substitute: RC-EXZ3A Notes: ECO TOUCH, RC-EX3A   Contact
  • [12] SSA423A101A HOSE,DRAIN In Stock Substitute: SSA423A101C Notes: SEE C: CONTROL AND PARTS SET
  • [12-14] PJF008A001AW PARTS SET In Stock Notes: INCLUDES DRAIN HOSE, HOSE CLAMP AND PIPE INSULATION
  • [13] V300Y42 HOSE CLAMP Contact Substitute: V300Y42X001U   Contact
  • [14] SSA153B016BA INSULATION,PIPE In Stock Show Image
  • [15] PJG011F073F LABEL,MODEL NAME Contact Notes: !   Contact
SKU: FDUM60VH/1 CONTROL AND PARTS SET Category:
