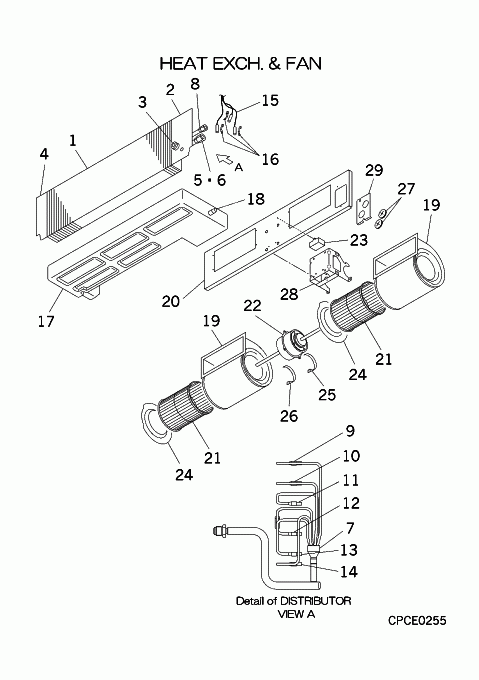

FDUM60VD HEAT EXCH. AND FAN

FDUM60VD HEAT EXCH. AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJR311A126A
HEAT EXCH(AIR)
Contact
[1-16] In Stock
PJR311A125K
HEAT EXCH ASSY(AIR
[2-3] Contact
PJR141A104
PLATE BAFF
Contact
Notes: RIGHT
[3] Contact
S751W09
GROMMET
Contact
Notes: D13
[4] Contact
PJR141A105
PLATE BAFF
Contact
Notes: LEFT
[5-6] Contact
PJR315D113D
HEADER ASSY,GAS
Contact
[6] Contact
SSA323F012G
UNION,SOLDER
Contact
Notes: GAS
[7] Contact
SSA315A252D
DISTRIBUTOR
Contact
[7-14] Contact
PJR315A026C
DISTRIBUTOR ASSY
Contact
[8] Contact
SSA323F075
UNION
Contact
Notes: LIQ.
[9] Contact
PJR315B249
CAPILLARY(1)
Contact
Notes: !D2.2XD4.0 L290
[10] Contact
PJR315B250
CAPILLARY(2)
Contact
Notes: !D2.0XD4.0 L260
[11] Contact
PJR315B251
CAPILLARY(3)
Contact
Notes: !D2.4XD4.0 L220
[12] Contact
PJR315B252
CAPILLARY(4)
Contact
Notes: !D2.6XD4.0 L200
[13] Contact
PJR315B253
CAPILLARY(5)
Contact
Notes: !D2.6XD4.0 L190
[14] Contact
PJR315B254
CAPILLARY(6)
Contact
Notes: !D2.8XD4.0 L240
[15] In Stock
PJR551A008
SENSOR ASSY(TEMP)
Notes: THI-R1,2,3 Show Image
PJR551A008
[16] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR Show Image
RKJ941F001
[17-18] In Stock
PJR454A303A
PAN ASSY,DRAIN
[18] In Stock
SSA326A003F
PLUG
SSA326A003F
[19] In Stock
PJR433B007A
SCROLL ASSY
[20] Contact
PJR116A206C
BRACKET,FAN
Contact
[21] In Stock
SSA431D089A
IMPELLER
[22] In Stock
SSA511T223
MOTOR,AC
Notes: LEFT, left side
[23] In Stock
SSA552A849
CAPACITOR,RUNNING
Notes: 5MF 450VAC
[24] Out of Stock
PJB433A001C
SHROUD,SUCTION
Substitute: OUT OF PRODUCTION
[25] In Stock
PFA116A207B
BRACKET, MOTOR
Notes: RIGHT, LEFT Show Image
PFA116A207B
[26] In Stock
PFA116A207C
BRACKET, MOTOR
Notes: LEFT Show Image
PFA116A207C
[27] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[28] Contact
PJR116A211
BRACKET(MOTOR)
Contact
[29] Contact
PJR132A105A
LID
Contact
