FDUM50VH/1 CONTROL AND PARTS SET

FDUM50VH/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

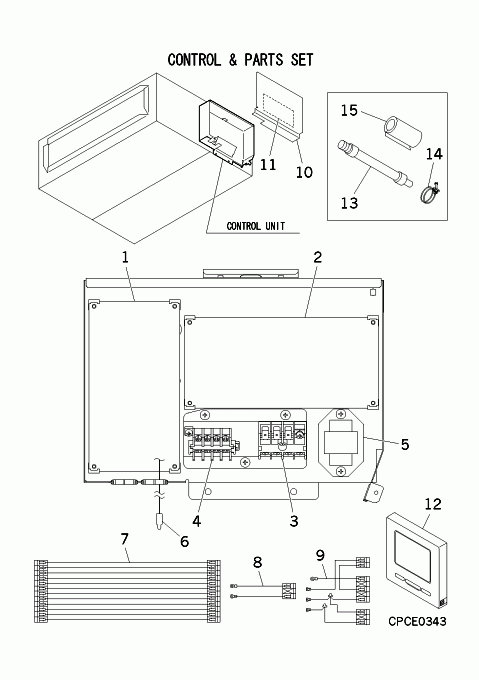

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-9] Contact
PJG501A024AG
CONTROL UNIT
Contact
Notes: NOT AVAILABLE
[1] In Stock
PJA505A228ND
PWB ASSY (CONTROL)
Notes: ONLY FOR SUPPLY PARTS
[2] In Stock
PJA505A230P
PWB ASSY (POWER)
Notes: ONLY FOR SUPPLY PARTS, POWER PCB. PLUGS INTO FAN MOTOR
[3] In Stock
SSA561B702
BLOCK,TERMINAL
Notes: TB1 Show Image
SSA561B702
[4] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[5] In Stock
SSA554B104A
TRANSFORMER
Show Image
SSA554B104A
[6] In Stock
PSA551A001CG
SENSOR ASSY
Notes: THI-A Show Image
PSA551A001CG
[7] In Stock
PJG504A001
WIRING(PWB)
Notes: CNW2 PWB- CNW1 PWB, CNW2- CNW1
[8] In Stock
PJF504A006K
WIRING(TB,XY)
Notes: TB2 X,TB2 Y- CNB PWB Show Image
PJF504A006K
[9] Contact
PJG504A002A
WIRING(TB,POWER)
Contact
Notes: CONT E,TB1 1,TB1 2,TB1 3- CNWR2,CNW0 PWB,CNW3 PWB, CONT E,TB1 1,TB1 2,TB1 3- CNWR2,CNW0,CNW3
[10] Contact
PJG142A003
LID ASSY,CONTROL B
Contact
[11] Contact
PJG011G022
LABEL,WIRING
Contact
Notes: !
[12] Contact
PJZ502A031AC
Advanced Wired Remote
Contact
Substitute: RC-EXZ3A Notes: RC-EX3A, SALES ITEM - ECO TOUCH
[13-15] In Stock
PJF008A001AW
PARTS SET
Notes: Includes Drain Hose, Hose Clamp & Insulation
[13] In Stock
SSA423A101A
HOSE,DRAIN
Notes: SEE C: CONTROL & PARTS SET
[14] In Stock
V300Y42
HOSE CLAMP
[15] In Stock
SSA153B016BA
INSULATION,PIPE
Show Image
SSA153B016BA
[16] Contact
PJG011F073D
LABEL,MODEL NAME
Contact
Notes: !
SKU: FDUM50VH/1 CONTROL AND PARTS SET Category:
