FDUM50VF/C CONTROL AND PARTS SET

FDUM50VF/C CONTROL AND PARTS SET

Available Parts

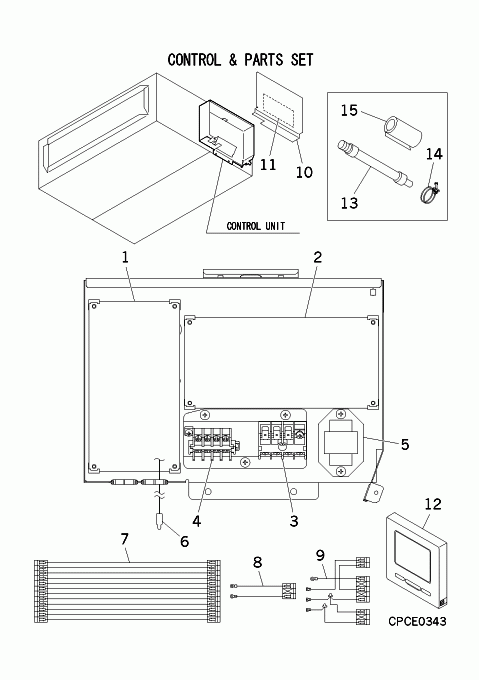

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJA505A228S PWB ASSY CO In Stock Substitute: PJA505A228PA Show Image
  • [1-9] PJG501A007CG CONTROL UNIT Contact Notes: Not suitable for this model   Contact
  • [2] PJA505A230J PWB ASSY(POWER) In Stock Notes: PLUGS INTO FAN MOTOR Show Image
  • [3] SSA561B702 BLOCK,TERMI In Stock Notes: TB1 Show Image
  • [4] SSA561B720A BLOCK,TERMINAL In Stock Notes: TB2, TB2 Show Image
  • [5] SSA554B104A TRANSFORMER In Stock Show Image
  • [6] PSA551A001CG SENSOR ASSY In Stock Notes: THI-A, THI-A Show Image
  • [7] PJG504A001 WIRING(PWB) Contact Notes: CNW2- CNW1, CNW2 PWB- CNW1 PWB   Contact
  • [8] PJF504A006K WIRING(TB,XY) In Stock Notes: TB2 X,TB2 Y- CNB PWB, TB2 X,TB2 Y- CNB PWB
  • [9] PJG504A002A WIRING(TB,POWER) Contact Notes: CONT E,TB1 1,TB1 2,TB1 3- CNWR2,CNW0,CNW3, CONT E,TB1 1,TB1 2,TB1 3- CNWR2,CNWO PWB,CNW3 PWB   Contact
  • [10] PJG142A003 LID ASSY,CONTROL B Contact   Contact
  • [11] PJG011G004 LABEL,WIRING Contact Notes: Not suitable for this model   Contact
  • [12] PJZ502A024AB ADVANCED WIRED REMOTE Contact Substitute: RC-EXZ3A Notes: ECO TOUCH, RC-EX1A   Contact
  • [13] SSA423A101A HOSE,DRAIN In Stock Substitute: SSA423A101C Notes: SEE C: CONTROL AND PARTS SET
  • [13-15] PJF008A001W PARTS SET Contact   Contact
  • [14] V300Y38 CLAMP In Stock Notes: CLAMP Show Image
  • [15] SSA153B016BA INSULATION,PIPE In Stock Show Image
  • [16] PJG011F007CD LABEL,MODEL NAME Contact Notes: Not suitable for this model   Contact
SKU: FDUM50VF/C CONTROL AND PARTS SET Category:
