FDUM50VD HEAT EXCH. AND FAN

FDUM50VD HEAT EXCH. AND FAN

Available Parts

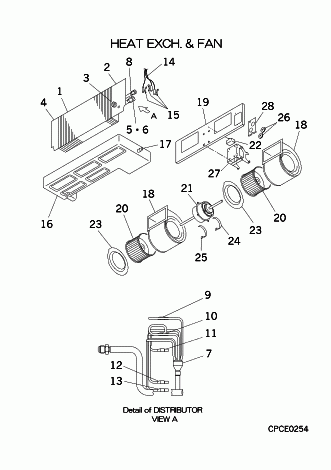

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJR311A126 HEAT EXCH(AIR) Contact   Contact
  • [1-15] PJR311A125M HEAT EXCH ASSY(AIR In Stock
  • [2-3] PJR141A104 PLATE BAFF Contact Notes: RIGHT   Contact
  • [3] S751W09 GROMMET Contact Notes: D13   Contact
  • [4] PJR141A105 PLATE BAFF Contact Notes: LEFT   Contact
  • [5-6] PJR315D115G HEADER ASSY,GAS Contact   Contact
  • [6] SSA323F012G UNION,SOLDER Contact Notes: GAS   Contact
  • [7] SSA315A252 DISTRIBUTOR Contact   Contact
  • [7-13] PJR315A027A DISTRIBUTOR ASSY Contact   Contact
  • [8] SSA323F075 UNION Contact Notes: LIQ.   Contact
  • [9] PJR315B255 CAPILLARY(1) Contact Notes: !D2.4XD4.0 L220, !D2.4XD4.0 L220   Contact
  • [10] PJR315B256 CAPILLARY(2) Contact Notes: !D2.0XD4.0 L380, !D2.0XD4.0 L380   Contact
  • [11] PJR315B257 CAPILLARY(3) Contact Notes: !D2.6XD4.0 L220, !D2.6XD4.0 L220   Contact
  • [12] PJR315B258 CAPILLARY(4) Contact Notes: !D3.0XD4.0 L240, !D3.0XD4.0 L240   Contact
  • [13] PJR315B259 CAPILLARY(5) Contact Notes: !D2.4XD4.0 L280, !D2.4XD4.0 L280   Contact
  • [14] PSA551A010B SENSOR ASSY(TEMP) In Stock Notes: THI-R1,2,3, THI-R1,2,3 Show Image
  • [15] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR SENSOR Show Image
  • [16-17] PJR454A303 PAN ASSY,DRAIN In Stock
  • [17] SSA326A003F PLUG In Stock Show Image
  • [18] PJR433B007 SCROLL ASSY In Stock
  • [19] PJR116A206B BRACKET,FAN Contact   Contact
  • [20] SSA431D089 IMPELLER In Stock
  • [21] SSA511T221 FAN MOTOR In Stock
  • [22] SSA552A848 CAPACITOR,RUNNING Contact Notes: 4MF 500VAC, 4MF 500VAC   Contact
  • [23] PJB433A001C SHROUD,SUCTION Contact Substitute: OUT OF PRODUCTION   Contact
  • [24] PFA116A207B BRACKET, MOTOR In Stock Substitute: PFA116A207G Notes: RIGHT Show Image
  • [25] PFA116A207C BRACKET, MOTOR In Stock Substitute: PFA116A207H Notes: LEFT Show Image
  • [26] S751W30X GROMMET V14 In Stock Notes: D35 Show Image
  • [27] PJR116A211A BRACKET(MOTOR) Contact   Contact
  • [28] PJR132A105A LID Contact   Contact
