FDUM50VD CONTROL AND PARTS SET

Name: FDUM50VD CONTROL AND PARTS SET
SKU: FDUM50VD CONTROL AND PARTS SET
Availability: InStock

FDUM50VD CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

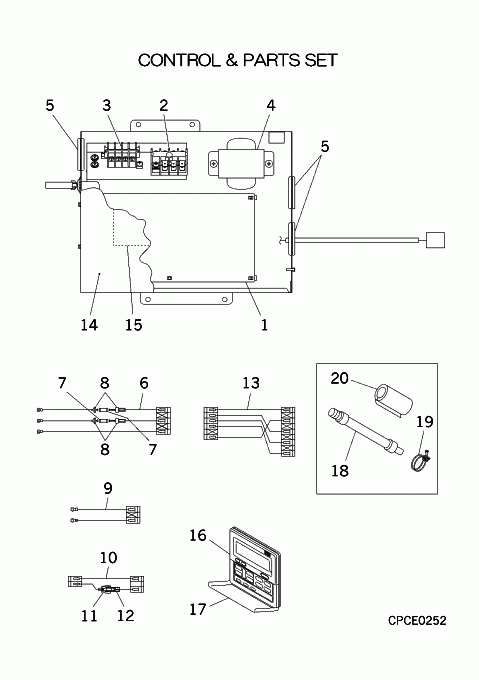

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A192YD

PWB ASSY

Show Image

[1-13] Contact

PJR501A311AG

CONTROL UNIT

Contact

[2] In Stock

SSA561B702

BLOCK,TERMINAL

Notes: TB1 Show Image

[3] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[4] In Stock

SSA554A487

TRANSFORMER

Notes: TR Show Image

[5] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[6-8] Contact

PJB504A230B

WIRING(TB,POWER)

Contact

Notes: TB1 1,TB1 2,TB1 3-CNW0 PWB

[7] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: 3.15A, 3.15 AMP FUSE Show Image

[8] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[9] Contact

PJB504A228A

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y- CNB PWB, TB2 X,TB2 Y-CNB PWB

[10-12] Contact

PJB504A238H

WIRING(DM)

Contact

Substitute: PJB504A238A Notes: CNR PWB- CNR2 DM, CNR PWB-CNR2 DM

[11] In Stock

SSA564A139

FUSE(CURRENT)

Notes: 0.16A, F 0.16A Show Image

[12] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[13] Contact

PJR504A310

WIRING(FM)

Contact

Notes: CNF3 FMI- PWB CNM3, CNF3 FMI-PWB CNM3

[14-15] Contact

PJR142A128R

LID ASSY,CONTROL B

Contact

[15] Contact

PJR011G307

LABEL,WIRING

Contact

[16-17] Contact

PJA502A800BC

CONTROL ASSY,REMOTE

Contact

Substitute: RC-E5 Notes: RC-E4, "RC-E5" SALES ITEM, REPLACES RC-E3 AND RC-E4

[17] Contact

PJA129A708

COVER Z

Contact

[18] In Stock

SSA423A101

HOSE,DRAIN

Show Image

[18-20] In Stock

PJA006A317L

INSTALLATION KIT

[19] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image

[20] In Stock

SSA153B016BA

INSULATION,PIPE

Show Image

[21] Contact

PJR011F313A

LABEL,MODEL NAME

Contact

SKU: FDUM50VD CONTROL AND PARTS SET Category: Uncategorised
