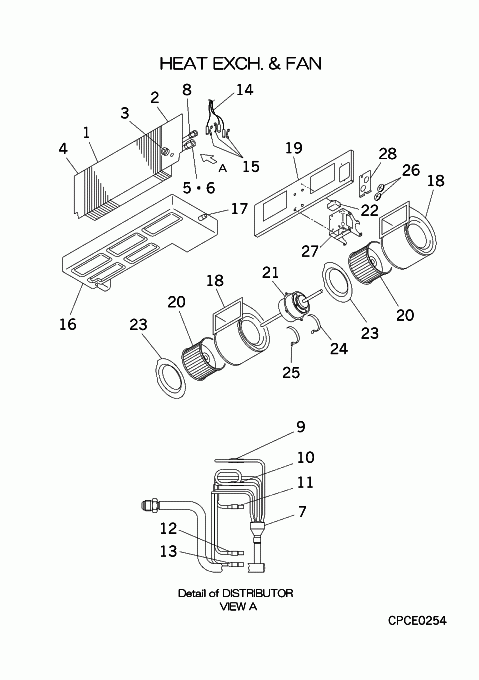

FDUM50V HEAT EXCH. AND FAN

FDUM50V HEAT EXCH. AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJR311A126
HEAT EXCH(AIR)
Contact
[1-15] In Stock
PJR311A125M
HEAT EXCH ASSY(AIR
[2-3] Contact
PJR141A104
PLATE BAFF
Contact
Notes: RIGHT
[3] Contact
S751W09
GROMMET
Contact
Notes: D13
[4] Contact
PJR141A105
PLATE BAFF
Contact
Notes: LEFT
[5-6] Contact
PJR315D115G
HEADER ASSY,GAS
Contact
[6] Contact
SSA323F012G
UNION,SOLDER
Contact
Notes: GAS
[7] Contact
SSA315A252
DISTRIBUTOR
Contact
[7-13] Contact
PJR315A027A
DISTRIBUTOR ASSY
Contact
[8] Contact
SSA323F075
UNION
Contact
Notes: LIQ.
[9] Contact
PJR315B255
CAPILLARY(1)
Contact
Notes: !D2.4XD4.0 L220
[10] Contact
PJR315B256
CAPILLARY(2)
Contact
Notes: !D2.0XD4.0 L380
[11] Contact
PJR315B257
CAPILLARY(3)
Contact
Notes: !D2.6XD4.0 L220
[12] Contact
PJR315B258
CAPILLARY(4)
Contact
Notes: !D3.0XD4.0 L240
[13] Contact
PJR315B259
CAPILLARY(5)
Contact
Notes: !D2.4XD4.0 L280
[14] In Stock
PSA551A010B
SENSOR ASSY(TEMP)
Notes: THI-R1,2,3 Show Image
PSA551A010B
[15] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR Show Image
RKJ941F001
[16-17] In Stock
PJR454A303
PAN ASSY,DRAIN
[17] In Stock
SSA326A003F
PLUG
Show Image
SSA326A003F
[18] In Stock
PJR433B007
SCROLL ASSY
[19] Contact
PJR116A206B
BRACKET,FAN
Contact
[20] In Stock
SSA431D089
IMPELLER
[21] Out of Stock
SSA511T221
FAN MOTOR
[22] In Stock
SSA552A260T
CAPACITOR
Notes: 4MF 500VAC
[23] Out of Stock
PJB433A001C
SHROUD,SUCTION
Substitute: OUT OF PRODUCTION
[24] In Stock
PFA116A207B
BRACKET, MOTOR
Notes: RIGHT, LEFT Show Image
PFA116A207B
[25] In Stock
PFA116A207C
BRACKET, MOTOR
Notes: LEFT Show Image
PFA116A207C
[26] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[27] Contact
PJR116A211A
BRACKET(MOTOR)
Contact
[28] Contact
PJR132A105A
LID
Contact
