FDUM28KXE6F/B CONTROL AND PARTS SET

FDUM28KXE6F/B CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

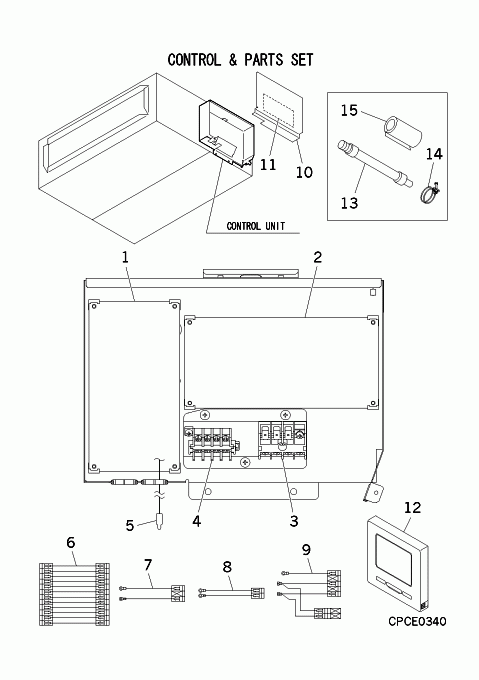

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PJA505A229D
PWB ASSY CONTROL
Notes: CONTROL BOARD Show Image
PJA505A229D
[1-9] Contact
PJG501A008AB
CONTROL UNIT
Contact
Notes: Not suitable for this model, NOT AVAILABLE
[2] In Stock
PJA505A230R
PWB ASSY(POWER)
[3] In Stock
SSA561B702C
BLOCK,TERMINAL
Notes: TB1
[4] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[5] In Stock
PSA551A001CG
SENSOR ASSY
Notes: THI-A Show Image
PSA551A001CG
[6] In Stock
PJG504A001
WIRING(PWB)
Notes: CNW2 PWB- CNW1 PWB, CNW2- CNW1
[7] Contact
PJF504A006C
WIRING(TB,XY)
Contact
Notes: TB2 X,TB2 Y- CNB PWB, TB2 X,TB2 Y-CNB PWB
[8] Contact
PJF504A010D
WIRING(TB,AB)
Contact
Notes: TB2 A,TB2 B- CNK1 PWB
[9] Contact
PJG504A007
WIRING(TB,POWER)
Contact
Notes: CONT E,TB1 1,TB1 2- CNWO PWB,CNU
[10] Contact
PJG142A003
LID ASSY,CONTROL B
Contact
[11] Contact
PJG011G005
LABEL,WIRING
Contact
Notes: Not suitable for this model
[12] Contact
PJZ502A024AB
Advanced Wired Remote
Contact
Notes: RC-EX1A, SALES ITEM - ECO TOUCH
[13] In Stock
SSA423A101
HOSE,DRAIN
Show Image
SSA423A101
[13-15] In Stock
PJF008A001D
PARTS SET
[14] In Stock
V300Y38
CLAMP
Notes: CLAMP Show Image
V300Y38
[15] In Stock
SSA153B016BA
INSULATION,PIPE
Show Image
SSA153B016BA
[16] Contact
PJG011F008BB
LABEL,MODEL NAME
Contact
Notes: Not suitable for this model
