FDUM22KXE6F/1 HEAT EXCH. AND FAN

FDUM22KXE6F/1 HEAT EXCH. AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

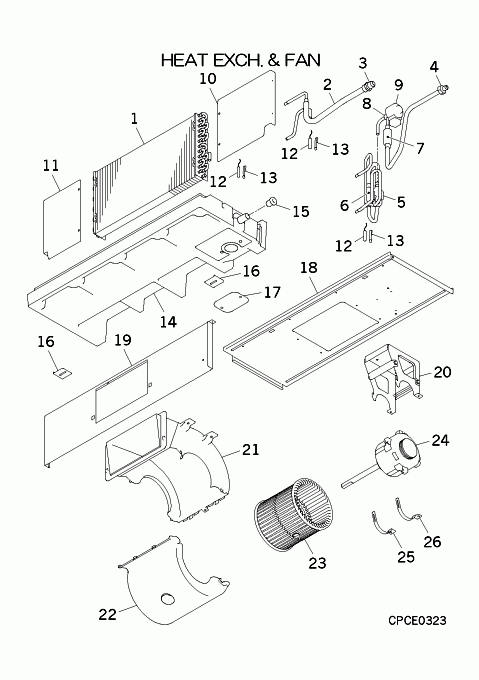

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJC311A119
HEAT EXCH(AIR)
Contact
[1-19] In Stock
PJG301A004D
HEAT EXCH ASSY
[2-3] Contact
PJG315D005
HEADER ASSY,GAS
Contact
[3] Contact
SSA323F001C
UNION(SLD)
Contact
[4] Contact
SSA323F075
UNION
Contact
[5] Contact
SSA315A255C
DISTRIBUTOR
Contact
[5-6] Contact
PJG315A009
DISTRIBUTOR ASSY
Contact
[6] In Stock
SSA357A059T
STRAINER
[7] In Stock
SSA357A005C
STRAINER
Show Image
SSA357A005C
[8] In Stock
SSA387F047B
EXP VALVE
Notes: SM, EXPANSION VALVE BODY Show Image
SSA387F047B
[9] In Stock
SSA382F210AW
SOLENOID COIL (EEV)
Notes: FOR SM
[10] Contact
PJG141A005
PLATE,BAFFLE(R)
Contact
[11] Contact
PJG141A006
PLATE,BAFFLE(L)
Contact
[12] In Stock
PJF551A002H
SENSOR ASSY(TEMP)
Notes: THI-R1,2,3, LENGTH 68.5CM Show Image
PJF551A002H
[13] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[14-15] In Stock
PJG454A001B
DRAIN PAN
[15] In Stock
SSA326A003F
PLUG
Show Image
SSA326A003F
[16] In Stock
PJG116A009
BRACKET
Show Image
PJG116A009
[17] In Stock
PJG142A006
LID ASSY(DRAIN)
Notes: LENGTH 10CM Show Image
PJG142A006
[18] Contact
PJG119A001
PLATE(BASE,FAN)
Contact
[19] Contact
PJG119A003
PLATE,FAN
Contact
[20] Out of Stock
PJG116A001B
BRACKET ASSY(MOTOR)
Show Image
PJG116A001B
[21] Out of Stock
PJG433B001
BELLMOUTH
Notes: Upper
[22] Out of Stock
PJG433B002
BELLMOUTH
Notes: Lower
[23] In Stock
SSA431D093A
IMPELLER
Show Image
SSA431D093A
[24] In Stock
SSA512T108ZC
MOTOR,DC
Notes: SINGLE SHAFT
[25] Out of Stock
PJG116A063
BRACKET(MOTOR)
Notes: LEFT Show Image
PJG116A063
[26] In Stock
PFA116A207H
BRACKET
Notes: RIGHT Show Image
PFA116A207H
SKU: FDUM22KXE6F/1 HEAT EXCH. AND FAN Category:
