FDUM22KXE6F/1 CABINET ASSY

FDUM22KXE6F/1 CABINET ASSY

Available Parts

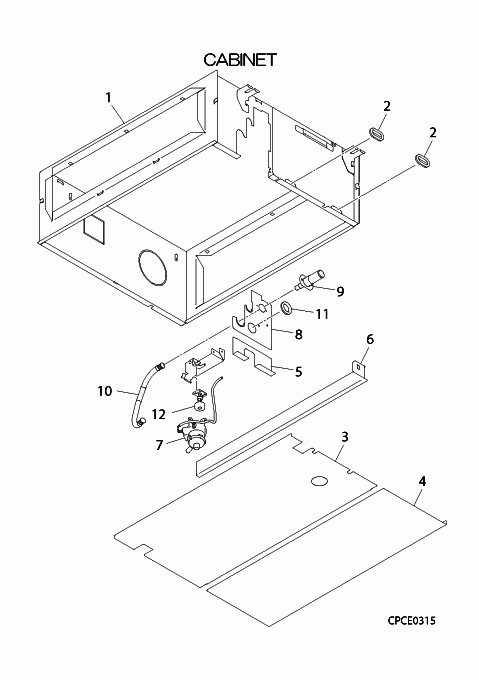

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-2] PJG100A001G CABINET ASSY Contact   Contact
  • [2] SSA947B120 GROMMET In Stock Notes: LENGTH 5.5CM Show Image
  • [3] PJG111A001 PLATE ASSY,BOTTOM( Contact   Contact
  • [4] PJG111A003 PLATE ASSY,BOTTOM( Contact   Contact
  • [5] PJG132A003 LID ASSY Contact   Contact
  • [6] PJG115A002 STIFFENER(BOTTOM) Contact   Contact
  • [7] SSA451A012 PUMP, DRAIN In Stock Show Image
  • [7-12] PJG451A001B PUMP ASSY,DRAIN In Stock
  • [8] PJG132A001 LID In Stock
  • [9] SSA422C088 SOCKET Out of Stock Notes: LENGTH 11.5CM Show Image
  • [10] SSA423A110 HOSE,DRAIN In Stock Show Image
  • [11] S751W30 GROMMET In Stock Notes: D35 Show Image
  • [12] SSA536A030 FLOAT SWITCH In Stock Notes: LENGTH 107.5CM, FS
  • [13] SSA423A101 HOSE,DRAIN In Stock Substitute: SSA423A101A Notes: ACCESSORIES SEE SECTION Show Image
  • [14] V300Y38 CLAMP In Stock Notes: CLAMP, ACCESSORIES SEE SECTION Show Image
SKU: FDUM22KXE6F/1 CABINET ASSY Category:
