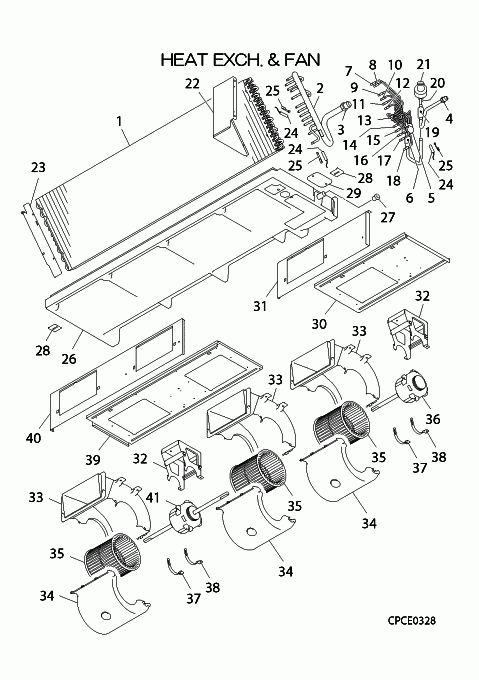

FDUM160KXE6F/1 HEAT EXCH. AND FAN

FDUM160KXE6F/1 HEAT EXCH. AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock
PJG311A002
HEAT EXCH(AIR)
[1-25] Out of Stock
PJG301A005
HEAT EXCH ASSY
[2-3] Contact
PJG315D001
HEADER ASSY,GAS
Contact
[3] Contact
SSA323F012C
UNION,SOLDER
Contact
[4] In Stock
SSA323F088
UNION(SLD)
Notes: FOR GAS, LENGTH 2.6CM Show Image
SSA323F088
[5] Contact
PJG315A001B
DISTRIBUTOR
Contact
[5-18] Contact
PJG315A007
DISTRIBUTOR ASSY
Contact
[6] In Stock
SSA357A051
STRAINER
Show Image
SSA357A051
[7] Contact
PJG315B002
CAPILLARY
Contact
Notes: !D1.8XD4.0 L360
[8] Contact
PJG315B002A
CAPILLARY
Contact
Notes: !D2.0XD4.0 L300
[9] Contact
PJG315B002B
CAPILLARY
Contact
Notes: !D3.0XD4.0 L260
[10] Contact
PJG315B002C
CAPILLARY
Contact
Notes: !D2.4XD4.0 L240
[11] Contact
PJG315B002D
CAPILLARY
Contact
Notes: !D2.6XD4.0 L220
[12] Contact
PJG315B002F
CAPILLARY
Contact
Notes: !D2.6XD4.0 L200
[13] Contact
PJG315B002G
CAPILLARY
Contact
Notes: !D2.6XD4.0 L200
[14] Contact
PJG315B002H
CAPILLARY
Contact
Notes: !D2.6XD4.0 L200
[15] Contact
PJG315B002J
CAPILLARY
Contact
Notes: !D2.4XD4.0 L220
[16] Contact
PJG315B002K
CAPILLARY
Contact
Notes: !D2.0XD4.0 L240
[17] Contact
PJG315B002L
CAPILLARY
Contact
Notes: !D2.0XD4.0 L260
[18] Contact
PJG315B002M
CAPILLARY
Contact
Notes: !D2.6XD4.0 L340
[19] Out of Stock
SSA357A005P
STRAINER
Show Image
SSA357A005P
[20] In Stock
SSA387F045B
VALVE,BODY(EXP)
Notes: SM Show Image
SSA387F045B
[21] In Stock
SSA382F212W
COIL SOLENOID
Notes: FOR EEVH Show Image
SSA382F212W
[22] Contact
PJG141A001
PLATE,BAFFLE(R)
Contact
[23] Contact
PJG141A002
PLATE,BAFFLE(L)
Contact
[24] In Stock
PJF551A002J
SENSOR ASSY
Notes: THI-R1,2,3 Show Image
PJF551A002J
[25] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR Show Image
RKJ941F001
[26-27] In Stock
PJG454A003
DRAIN PAN
[27] In Stock
SSA326A003F
PLUG
Show Image
SSA326A003F
[28] In Stock
PJG116A009
BRACKET
Show Image
PJG116A009
[29] In Stock
PJG142A006
LID ASSY(DRAIN)
Notes: LENGTH 10CM Show Image
PJG142A006
[30] Contact
PJG119A004
PLATE(BASE,FAN)
Contact
Notes: RIGHT
[31] Contact
PJG119A005
PLATE,FAN
Contact
Notes: RIGHT
[32] In Stock
PJG116A001B
BRACKET ASSY(MOTOR)
Show Image
PJG116A001B
[33] In Stock
PJG433B001
BELLMOUTH
Notes: Upper
[34] In Stock
PJG433B002
BELLMOUTH
Notes: Lower
[35] In Stock
SSA431D093A
IMPELLER
Show Image
SSA431D093A
[36] In Stock
SSA512T108ZC
MOTOR,DC
Notes: RIGHT, SINGLE SHAFT
[37] In Stock
PJG116A063
BRACKET(MOTOR)
Notes: LEFT Show Image
PJG116A063
[38] In Stock
PFA116A207H
BRACKET
Notes: RIGHT Show Image
PFA116A207H
[39] Contact
PJG119A004A
PLATE(BASE,FAN)
Contact
Notes: LEFT
[40] Contact
PJG119A005A
PLATE,FAN
Contact
Notes: LEFT
[41] In Stock
SSA512T110ZC
MOTOR,DC
Notes: LEFT
