FDUM160KXE6F/1 CONTROL AND PARTS SET

FDUM160KXE6F/1 CONTROL AND PARTS SET

Available Parts

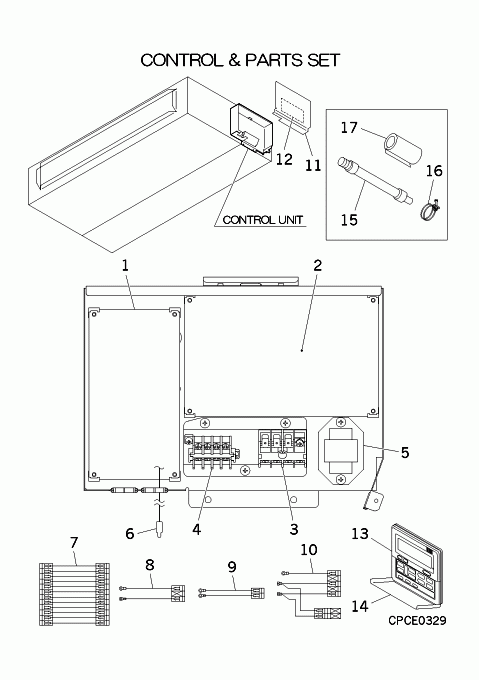

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJA505A229B PWB ASSY In Stock Substitute: PJA505A229F Notes: PWB ASSY(CONTROL) Show Image
  • [1-9] PJG501A002BR CONTROL UNIT Contact   Contact
  • [2] PJA505A231AC PWB ASSY In Stock Substitute: PJA505A331AC Notes: PWB ASSY(POWER) Show Image
  • [3] SSA561B702C BLOCK,TERMINAL In Stock Notes: TB1, TB1
  • [4] SSA561B720A BLOCK,TERMINAL In Stock Notes: TB2, TB2 Show Image
  • [5] SSA554B104 TRANSFORMER In Stock Show Image
  • [6] PSA551A001CG SENSOR ASSY In Stock Notes: THI-A, THI-A Show Image
  • [7] PJG504A001 WIRING(PWB) In Stock Notes: CNW2- CNW1, CNW2- CNW1
  • [8] PJF504A006C WIRING(TB,XY) Contact Notes: TB2 X,TB2 Y-CNB PWB, TB2 X,TB2 Y- CNB PWB   Contact
  • [9] PJF504A010D WIRING(TB,AB) Contact Notes: TB2 A,TB2 B- CNK1 PWB, TB2 A,TB2 B- CNK1 PWB   Contact
  • [10] PJG504A007 WIRING(TB,POWER) Contact Notes: CONT E,TB1 1,TB1 2- CNWO PWB,CNU, CONT E,TB1 1,TB1 2- CNWO PWB,CNU   Contact
  • [11] PJG142A003 LID ASSY,CONTROL B Contact   Contact
  • [12] PJG011G002 LABEL,WIRING Contact   Contact
  • [13-14] PJA502A800BC CONTROL ASSY,REMOTE Out of Stock Substitute: RC-E5 Notes: RC-E5 SALES ITEM, REPLACES RC-E3 AND RC-E4, RC-E5
  • [14] PJA129A708 COVER Z Contact   Contact
  • [15] SSA423A101 HOSE,DRAIN In Stock Substitute: SSA423A101A Show Image
  • [15-17] PJF008A001D PARTS SET In Stock
  • [16] V300Y38 CLAMP In Stock Notes: CLAMP Show Image
  • [17] SSA153B016BA INSULATION,PIPE In Stock Show Image
  • [18] PJG011F002P LABEL,MODEL NAME Contact   Contact
SKU: FDUM160KXE6F/1 CONTROL AND PARTS SET Category:
