FDUM140KXE6D HEAT EXCH. AND FAN

FDUM140KXE6D HEAT EXCH. AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

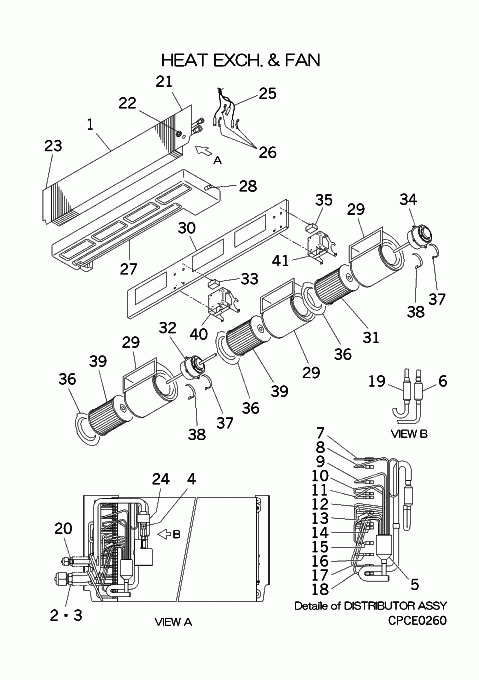

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJR311A127
HEAT EXCH(AIR)
Contact
[1-26] Contact
PJR301A105B
HEAT EXCH ASSY(AIR
Contact
Substitute: PJR301A105C
[2-3] Contact
PJR315D111C
HEADER ASSY,GAS
Contact
[3] Contact
SSA323F012C
UNION,SOLDER
Contact
[4] In Stock
SSA387F045A
VALVE EXPA
Notes: EEVC
[5-18] Contact
PJR315A032
DISTRIBUTOR ASSY
Contact
[6] In Stock
SSA357A059T
STRAINER
[7] Contact
PJR315B237
CAPILLARY(1)
Contact
Notes: !D2.0XD3.2 L500
[8] Contact
PJR315B238
CAPILLARY(2)
Contact
Notes: !D2.0XD3.2 L310
[9] Contact
PJR315B239
CAPILLARY(3)
Contact
Notes: !D2.6XD4.0 L270
[10] Contact
PJR315B240
CAPILLARY(4)
Contact
Notes: !D2.2XD4.0 L250
[11] Contact
PJR315B241
CAPILLARY(5)
Contact
Notes: !D2.6XD4.0 L230
[12] Contact
PJR315B242
CAPILLARY(6)
Contact
Notes: !D2.6XD4.0 L190
[13] Contact
PJR315B243
CAPILLARY(7)
Contact
Notes: !D2.6XD4.0 L200
[14] Contact
PJR315B244
CAPILLARY(8)
Contact
Notes: !D2.6XD4.0 L160
[15] Contact
PJR315B245
CAPILLARY(9)
Contact
Notes: !D2.2XD3.2 L180
[16] Contact
PJR315B246
CAPILLARY(10)
Contact
Notes: !D2.2XD3.2 L210
[17] Contact
PJR315B247
CAPILLARY(11)
Contact
Notes: !D2.2XD3.2 L220
[18] Contact
PJR315B248
CAPILLARY(12)
Contact
Notes: !D3.0XD4.0 L230
[19] In Stock
SSA357A059B
STRAINER
[20] Contact
SSA323F012A
UNION
Contact
[21-22] Contact
PJR141A100
PLATE BAFF
Contact
Notes: RIGHT
[22] Contact
S751W09
GROMMET
Contact
Notes: D13
[23] Contact
PJR141A101
PLATE BAFF
Contact
Notes: LEFT
[24] In Stock
SSA382F212W
COIL SOLENOID
Notes: FOR EEVH Show Image
SSA382F212W
[25] In Stock
PSA551A010B
SENSOR ASSY(TEMP)
Notes: THI-R1,2,3 Show Image
PSA551A010B
[26] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR Show Image
RKJ941F001
[27-28] Contact
PJR454A300
PAN ASSY,DRAIN
Contact
[28] In Stock
SSA326A003F
PLUG
Show Image
SSA326A003F
[29] In Stock
PJR433B007A
SCROLL ASSY
[30] Contact
PJR116A207A
BRACKET,FAN
Contact
[31] In Stock
SSA431D036G
FAN
Notes: RIGHT Show Image
SSA431D036G
[32] In Stock
SSA511T223
MOTOR,AC
Notes: LEFT, left side
[33] In Stock
SSA552A774
CAPACITOR
Notes: 6MF 450VAC Show Image
SSA552A774
[34] In Stock
SSA511T225
FAN MOTOR
Notes: RIGHT, (right side motor)
[35] Contact
SSA552A847
CAPACITOR,RUNNING
Contact
Notes: 3MF 500VAC
[36] Out of Stock
PJB433A001C
SHROUD,SUCTION
Substitute: OUT OF PRODUCTION
[37] In Stock
PFA116A207B
BRACKET, MOTOR
Notes: RIGHT, LEFT Show Image
PFA116A207B
[38] In Stock
PFA116A207C
BRACKET, MOTOR
Notes: LEFT Show Image
PFA116A207C
[39] In Stock
SSA431D089A
IMPELLER
[40] Contact
PJR116A211
BRACKET(MOTOR)
Contact
[41] Contact
PJR116A211A
BRACKET(MOTOR)
Contact
