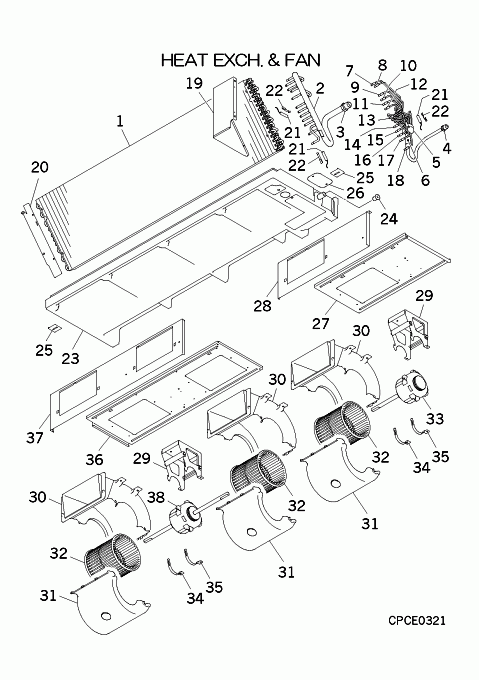

FDUM125VH/A HEAT EXCH. AND FAN

FDUM125VH/A HEAT EXCH. AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJG311A002A
HEAT EXCH(AIR)
Contact
Notes: !
[1-22] In Stock
PJG301A011
HEAT EXCH ASSY(AIR
Notes: Indoor Heat Exchanger Coil assembly
[2-3] Contact
PJG315D001A
HEADER ASSY,GAS
Contact
Notes: !
[3] Contact
SSA323F092F
UNION,SOLDER
Contact
[4] In Stock
SSA323F088
UNION(SLD)
Notes: LENGTH 2.6CM Show Image
SSA323F088
[4-18] Contact
PJG315A004
DISTRIBUTOR ASSY
Contact
[5] Contact
PJG315A001F
DISTRIBUTOR
Contact
Notes: !
[5-18] Contact
PJG315A005
DISTRIBUTOR ASSY
Contact
[6] In Stock
SSA357A051
STRAINER
SSA357A051
[7] Contact
PJG315B002
CAPILLARY
Contact
Notes: !D1.8XD4.0 L360
[8] Contact
PJG315B002A
CAPILLARY
Contact
Notes: !D2.0XD4.0 L300
[9] Contact
PJG315B002B
CAPILLARY
Contact
Notes: !D3.0XD4.0 L260
[10] Contact
PJG315B002C
CAPILLARY
Contact
Notes: !D2.4XD4.0 L240
[11] Contact
PJG315B002D
CAPILLARY
Contact
Notes: !D2.6XD4.0 L220
[12] Contact
PJG315B002F
CAPILLARY
Contact
Notes: !D2.6XD4.0 L200
[13] Contact
PJG315B002G
CAPILLARY
Contact
Notes: !D2.6XD4.0 L200
[14] Contact
PJG315B002H
CAPILLARY
Contact
Notes: !D2.6XD4.0 L200
[15] Contact
PJG315B002J
CAPILLARY
Contact
Notes: !D2.4XD4.0 L220
[16] Contact
PJG315B002K
CAPILLARY
Contact
Notes: !D2.0XD4.0 L240
[17] Contact
PJG315B002L
CAPILLARY
Contact
Notes: !D2.0XD4.0 L260
[18] Contact
PJG315B002M
CAPILLARY
Contact
Notes: !D2.6XD4.0 L340
[19] Contact
PJG141A001
PLATE,BAFFLE(R)
Contact
[20] Contact
PJG141A002
PLATE,BAFFLE(L)
Contact
[21] In Stock
PJF551A002J
SENSOR ASSY
Notes: THI-R1,2,3 Show Image
PJF551A002J
[22] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[23-24] In Stock
PJG454A003
DRAIN PAN
[24] In Stock
SSA326A003F
PLUG
SSA326A003F
[25] In Stock
PJG116A009
BRACKET
PJG116A009
[26] In Stock
PJG142A006
LID ASSY(DRAIN)
Notes: LENGTH 10CM Show Image
PJG142A006
[27] Contact
PJG119A004B
PLATE(BASE,FAN)
Contact
Notes: RIGHT
[28] Contact
PJG119A005
PLATE,FAN
Contact
Notes: RIGHT
[29] In Stock
PJG116A001B
BRACKET ASSY(MOTOR)
PJG116A001B
[30] In Stock
PJG433B001
BELLMOUTH
Notes: Upper
[31] In Stock
PJG433B002
BELLMOUTH
Notes: Lower
[32] In Stock
SSA431D093A
IMPELLER
SSA431D093A
[33] In Stock
SSA512T108ZC
MOTOR,DC
Notes: RIGHT, SINGLE SHAFT
[34] Out of Stock
PJG116A063
BRACKET(MOTOR)
Notes: LEFT Show Image
PJG116A063
[35] In Stock
PFA116A207H
BRACKET
Notes: RIGHT Show Image
PFA116A207H
[36] Contact
PJG119A004C
PLATE(BASE,FAN)
Contact
Notes: LEFT
[37] Contact
PJG119A005A
PLATE,FAN
Contact
Notes: LEFT
[38] In Stock
SSA512T110ZC
MOTOR,DC
Notes: LEFT
SKU: FDUM125VH/A HEAT EXCH. AND FAN Category:
