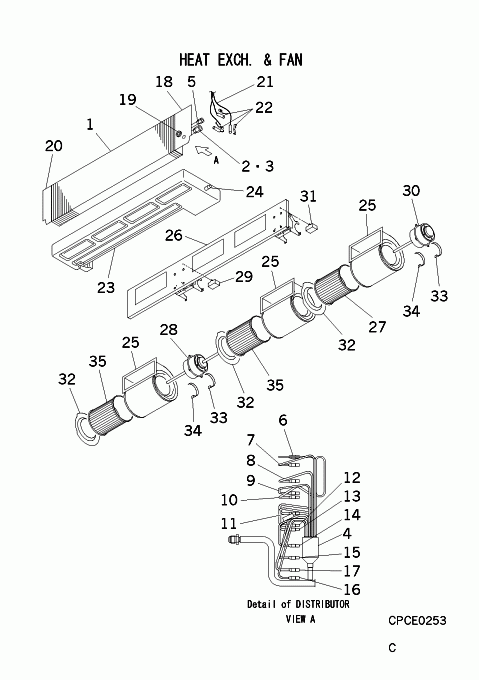

FDUM125V HEAT EXCH. AND FAN

FDUM125V HEAT EXCH. AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJR311A127
HEAT EXCH(AIR)
Contact
[1-22] Contact
PJR311A124C
HEAT EXCH ASSY(AIR
Contact
[2-3] Contact
PJR315D111C
HEADER ASSY,GAS
Contact
[3] Contact
SSA323F012C
UNION,SOLDER
Contact
[4] Contact
PJA315A703F
DISTRI Z
Contact
[4-17] Contact
PJR315A025B
DISTRIBUTOR ASSY
Contact
[5] Contact
SSA323F012A
UNION
Contact
[6] Contact
PJR315B237
CAPILLARY(1)
Contact
Notes: !D2.0XD3.2 L500
[7] Contact
PJR315B238
CAPILLARY(2)
Contact
Notes: !D2.0XD3.2 L310
[8] Contact
PJR315B239
CAPILLARY(3)
Contact
Notes: !D2.6XD4.0 L270
[9] Contact
PJR315B240
CAPILLARY(4)
Contact
Notes: !D2.2XD4.0 L250
[10] Contact
PJR315B241
CAPILLARY(5)
Contact
Notes: !D2.6XD4.0 L230
[11] Contact
PJR315B242
CAPILLARY(6)
Contact
Notes: !D2.6XD4.0 L190
[12] Contact
PJR315B243
CAPILLARY(7)
Contact
Notes: !D2.6XD4.0 L200
[13] Contact
PJR315B244
CAPILLARY(8)
Contact
Notes: !D2.6XD4.0 L160
[14] Contact
PJR315B245
CAPILLARY(9)
Contact
Notes: !D2.2XD3.2 L180
[15] Contact
PJR315B246
CAPILLARY(10)
Contact
Notes: !D2.2XD3.2 L210
[16] Contact
PJR315B247
CAPILLARY(11)
Contact
Notes: !D2.2XD3.2 L220
[17] Contact
PJR315B248
CAPILLARY(12)
Contact
Notes: !D3.0XD4.0 L230
[18-19] Contact
PJR141A100
PLATE BAFF
Contact
Notes: RIGHT
[19] Contact
S751W09
GROMMET
Contact
Notes: D13
[20] Contact
PJR141A101
PLATE BAFF
Contact
Notes: LEFT
[21] In Stock
PJR551A008A
SENSOR ASSY(TEMP)
Notes: THI-R1,2,3, THI-R1,2,3 - INDOOR COIL/REFRIGERANT THIRMISTOR/SENSOR ASSEMBLY Show Image
PJR551A008A
[22] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[23-24] Contact
PJR454A300
PAN ASSY,DRAIN
Contact
[24] In Stock
SSA326A003F
PLUG
Show Image
SSA326A003F
[25] In Stock
PJR433B007A
SCROLL ASSY
[26] Contact
PJR116A207A
BRACKET,FAN
Contact
[27] In Stock
SSA431D036G
FAN
Notes: RIGHT Show Image
SSA431D036G
[28] In Stock
SSA511T223
MOTOR,AC
Notes: LEFT, left side
[29] In Stock
SSA552A774
CAPACITOR
Notes: LEFT 6MF 450VAC Show Image
SSA552A774
[30] In Stock
SSA511T225
FAN MOTOR
Notes: RIGHT, (right side motor)
[31] Contact
SSA552A847
CAPACITOR,RUNNING
Contact
Notes: RIGHT 3MF 500VAC, 3MF 500VAC
[32] Out of Stock
PJB433A001C
SHROUD,SUCTION
Substitute: OUT OF PRODUCTION
[33] In Stock
PFA116A207B
BRACKET, MOTOR
Notes: RIGHT, LEFT Show Image
PFA116A207B
[34] In Stock
PFA116A207C
BRACKET, MOTOR
Notes: LEFT Show Image
PFA116A207C
[35] In Stock
SSA431D089A
IMPELLER
Notes: CENTER,LEFT
SKU: FDUM125V HEAT EXCH. AND FAN Category:
