FDUM1251HKXE HEAT EXCH. AND FAN

FDUM1251HKXE HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

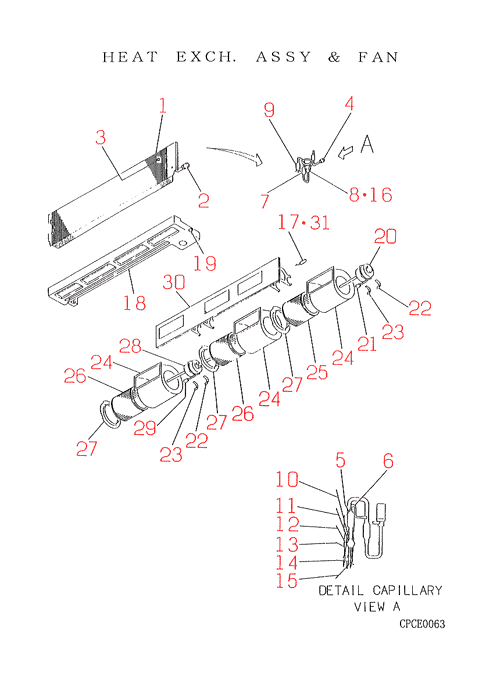

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-15] Contact

PJR311A105F

HEATEXCH

Contact

[2] Contact

SSA323F012D

UNION

Contact

[3] Contact

S751W09

GROMMET

Contact

[4] Contact

SSA323F012A

UNION

Contact

[5] Out of Stock

SSA357A007

STRAINER

Substitute: ZZ60573

[6] Contact

PJR315B150

CAPILLARY T

Contact

Notes: D3.0XD4.0 L100

[7] Contact

SSA357A008

STRAINER

Contact

Substitute: ZZ60571

[8] In Stock

SSA387F022

EXP HKXA

Notes: EXPANSION VALVE BODY Show Image

SSA387F022

[9] Contact

SSA315A205C

DISTRIBUTOR

Contact

[10] Contact

PJR315B137

CAPILLARY A

Contact

Notes: INCL. D1.5XD2.5 L150

[11] Contact

PJR315B138

CAPILLARY A

Contact

Notes: INCL. D1.5XD2.5 L150

[12] Contact

PJR315B139

CAPILLARY A

Contact

Notes: INCL. D1.5XD2.5 L150

[13] Contact

PJR315B140

CAPILLARY A

Contact

Notes: INCL. D1.5XD2.5 L150

[14] Contact

PJR315B141

CAPILLARY A

Contact

Notes: INCL. D1.5XD2.5 L150

[15] Contact

PJR315B142

CAPILLARY A

Contact

Notes: INCL. D1.5XD2.5 L150

[16] In Stock

SSA382F452B

COIL S 150O

Notes: EXPANSION VALVE COIL/ LENGTH 157CM Show Image

SSA382F452B

[17] In Stock

PJA551A005

SENSOR

Notes: THI-R Show Image

PJA551A005

[18-19] In Stock

PJR454A100

PAN DRAIN

[19] In Stock

SSA326A003F

PLUG

Show Image

SSA326A003F

[20-21] In Stock

PJR006A110L

PARTS SET(MOTOR)

Notes: RIGHT HAND SIDE FAN MOTOR

[21] Contact

SSA552A007C

CAPACITOR,RUNNING

Contact

[22] In Stock

PFA116A207B

BRACKET, MOTOR

Notes: LEFT Show Image

PFA116A207B

[23] In Stock

PFA116A207C

BRACKET, MOTOR

Show Image

PFA116A207C

[24] Contact

PJB433B001D

CASING

Contact

[25] In Stock

SSA431D089B

IMPELLER

[26] In Stock

SSA431D089A

IMPELLER

[27] In Stock

PJB433A001

SHROUD

Show Image

PJB433A001

[28-29] In Stock

PJR006A110G

MOTOR

Notes: Left Side - Twin shaft

[29] Contact

SSA511A35113

CAPACITOR

Contact

Substitute: PSA552A006B

[30] Contact

PJR116A102

FAN BRACKET

Contact

[31] In Stock

RKJ941F001

SPRING LEAF

Show Image

RKJ941F001

SKU: FDUM1251HKXE HEAT EXCH. AND FAN Category: Uncategorised
