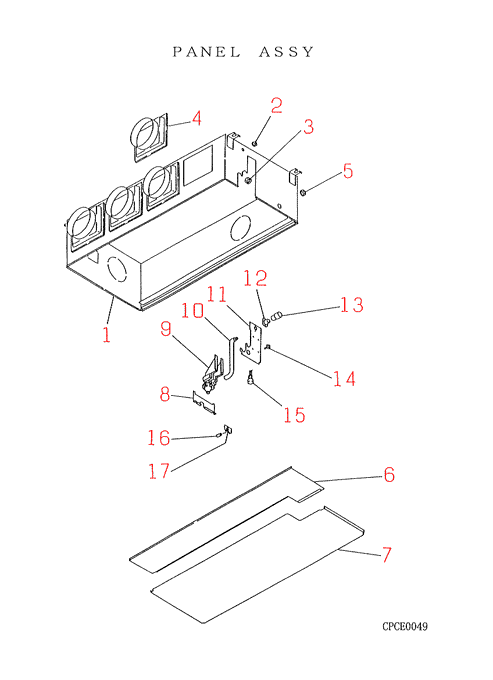

FDUM1001HKXE PANEL ASSY

FDUM1001HKXE PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] Contact
PJR100A107A
CABINET
Contact
[2] Contact
S751W09
GROMMET
Contact
[3] In Stock
S751W30X
GROMMET V14
Show Image
S751W30X
[4] In Stock
PJR438A102
JOINT DUCT
Show Image
PJR438A102
[5] In Stock
S751W30X
GROMMET V14
Show Image
S751W30X
[6] Contact
PJR111A101C
BOTTOM PLAT
Contact
[7] Contact
PJR111A102B
BOTTOM PLAT
Contact
[8] Contact
PJR132A101
LID
Contact
[9] Contact
PJR451A101A
PUMP DRAIN
Contact
[10] Contact
SSA423A051A
HOSE DRAIN
Contact
[11] Contact
PJR132A100A
LID
Contact
[12] Contact
SSA422C039
SOCKET
Contact
[13] In Stock
PJA129A103
SOCKET
Show Image
PJA129A103
[14] In Stock
SSA913D006A
SCREW 4X12
Notes: 1pc ONLY
[15] In Stock
SSA536A017C
SWITCH,FLOAT
Notes: FS Show Image
SSA536A017C
[16] Contact
SSA551A010
Contact
Notes: THI-A
[17] Contact
SSA947B010
GROMMET
Contact
SKU: FDUM1001HKXE PANEL ASSY Category:
