FDUM1001HKXE HEAT EXCH. AND FAN

FDUM1001HKXE HEAT EXCH. AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

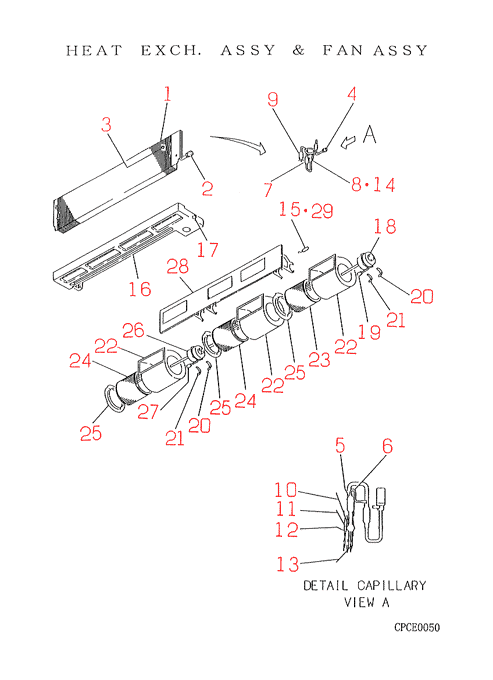

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-15] Contact
PJR311A105D
Contact
[2] Contact
SSA323F012D
UNION
Contact
[3] Contact
S751W09
GROMMET
Contact
[4] Contact
SSA323F012A
UNION
Contact
[5] Contact
PJR357A103
Contact
[6] Contact
PJR315B150
CAPILLARY T
Contact
Notes: D3.0XD4.0 L100
[7] Contact
SSA357A008
STRAINER
Contact
Substitute: ZZ60571
[8] In Stock
SSA387F022
EXP HKXA
Notes: EXPANSION VALVE BODY Show Image
SSA387F022
[9] Contact
SSA315A250
DISTRIBUTOR
Contact
[10] Contact
PJR315B133
CAPILLARY T
Contact
Notes: INCL.D1.5XD2.5 L150
[11] Contact
PJR315B134
CAPILLARY T
Contact
Notes: INCL.D1.5XD2.5 L150
[12] Contact
PJR315B135
CAPILLARY T
Contact
Notes: INCL.D1.5XD2.5 L150
[13] Contact
PJR315B136
CAPILLARY T
Contact
Notes: INCL.D1.5XD2.5 L150
[14] In Stock
SSA382F452B
COIL S 150O
Notes: EXPANSION VALVE COIL/ LENGTH 157CM Show Image
SSA382F452B
[15] In Stock
PJA551A005
SENSOR
Notes: THI-R Show Image
PJA551A005
[16-17] In Stock
PJR454A100
PAN DRAIN
[17] In Stock
SSA326A003F
PLUG
Show Image
SSA326A003F
[18-19] In Stock
SSA511A352B
MOTOR
[19] Contact
SSA552A007C
CAPACITOR,RUNNING
Contact
[20] In Stock
PFA116A207B
BRACKET, MOTOR
Notes: LEFT Show Image
PFA116A207B
[21] In Stock
PFA116A207C
BRACKET, MOTOR
Show Image
PFA116A207C
[22] Contact
PJB433B001D
CASING
Contact
[23] In Stock
SSA431D089B
IMPELLER
[24] In Stock
SSA431D089A
IMPELLER
[25] In Stock
PJB433A001
SHROUD
Show Image
PJB433A001
[26-27] Out of Stock
SSA511A351B
MOTOR AC
Substitute: SSA511A350B Notes: 7KG 60X22X21
[27] Contact
SSA511A35113
CAPACITOR
Contact
Substitute: PSA552A006B
[28] Contact
PJR116A102
FAN BRACKET
Contact
[29] In Stock
RKJ941F001
SPRING LEAF
Show Image
RKJ941F001
