FDUJ280HKXE HEAT EXCH. AND FAN

FDUJ280HKXE HEAT EXCH. AND FAN

Available Parts

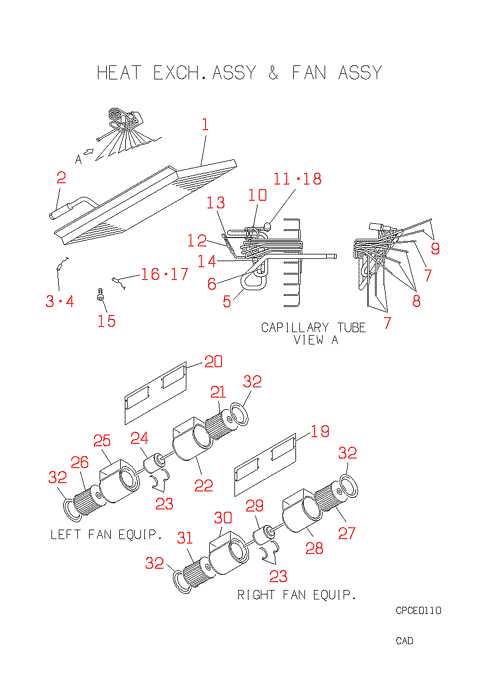

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJD311A001F HEAT EXCH Contact   Contact
  • [1-14] PJD301A020F   Contact   Contact
  • [2] PJD315D014A   Contact   Contact
  • [3] PJD551A002 SENSOR In Stock Notes: THI-R, THI-R Show Image
  • [4] RKF941F002A SPRING In Stock Notes: FOR THI-R Show Image
  • [5-14] PJD315A039A VALVE ASSY In Stock
  • [5-6] PJD321A174 PIPING ASSY Contact   Contact
  • [6] SSA357A008BK STRAINER Contact   Contact
  • [7] PJD315B080 CAPILLARY Contact Notes: !D3.5XD4.0 L150   Contact
  • [7-10] PJD315B083A DISTRIBUTOR Contact   Contact
  • [8] PJD315B080A CAPILLARY Contact Notes: !D3.5XD4.0 L150   Contact
  • [9] PJD315B080B CAPILLARY Contact Notes: !D2.4XD4.0 L185   Contact
  • [10] SSA315A206J DISTRIBUTOR Contact   Contact

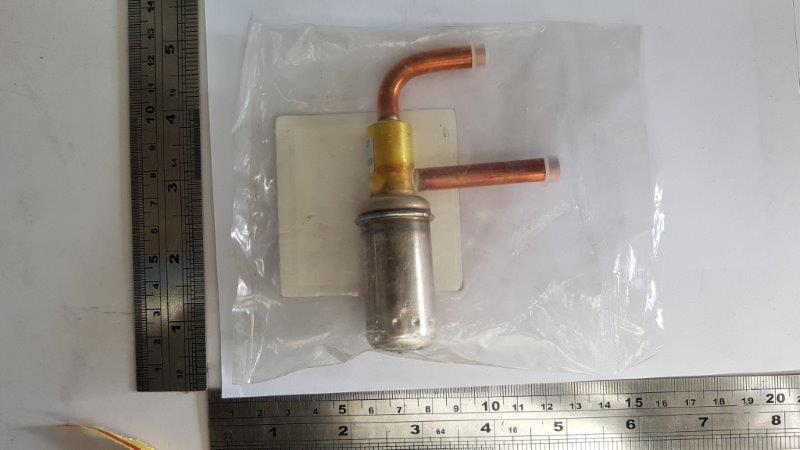

  • [11] SSA387F023 EXP HKXA In Stock Show Image
  • [12] SSA385A015 VALVE CHECK In Stock Show Image
  • [13] PJD315B185A CAPILLARY Contact Notes: !D1.5XD2.5 L500   Contact
  • [13-14] PJD321A175A PIPING ASSY Contact   Contact
  • [14] SSA357A008Z STRAINER Contact   Contact
  • [15] PJD536A002A SWITCH,FLOT In Stock Notes: FS Show Image
  • [16] PJA551A010 SENSOR ASSY In Stock Notes: THI-A, THI-A Show Image
  • [17] SSA937C290 CLIP Contact Notes: FOR THI-A   Contact
  • [18] SSA382F452A COIL S 700 In Stock Notes: SM
  • [19] PJD116A014 FAN BRACKET In Stock Notes: RIGHT FAN EQUIP.
  • [20] PJD116A014A BRAKET FAN In Stock Notes: LEFT FAN EQUIP.
  • [21] SSA431C020B IMPELLER In Stock Notes: LEFT SIDE OF RIGHT FAN EQUIP.
  • [22] PJD433A001B CASING Contact Notes: LEFT SIDE OF RIGHT FAN EQUIP.   Contact
  • [23] PFA116A108 BRACKET In Stock Show Image
  • [24] SSA511A365A FAN ASSY Contact Notes: LEFT FAN EQUIP.   Contact
  • [25] PJD433A001C CASING In Stock Notes: LEFT SIDE OF LEFT FAN EQUIP.
  • [26] SSA431C020C IMPELLER In Stock Notes: LEFT SIDE OF LEFT FAN EQUIP.
  • [27] SSA431C005A IMPELLER In Stock Substitute: RB32495A Notes: RIGHT SIDE OF RIGHT FAN EQUIP.
  • [28] PJD433A001 CASING In Stock Notes: RIGHT SIDE OF RIGHT FAN EQUIP.
  • [29] SSA511A364A   Contact Notes: RIGHT FAN EQUIP.   Contact
  • [30] PJD433A001A CASING In Stock Notes: LEFT SIDE OF RIGHT FAN EQUIP.
  • [31] SSA431C005 IMPELLER In Stock Substitute: RB32495 Notes: LEFT SIDE OF RIGHT FAN EQUIP.
  • [32] PDD433A003 SHROUD In Stock Substitute: RB32994
SKU: FDUJ280HKXE HEAT EXCH. AND FAN Category:
