FDUJ224HKXE HEAT EXCH. AND FAN

Name: FDUJ224HKXE HEAT EXCH. AND FAN
SKU: FDUJ224HKXE HEAT EXCH. AND FAN
Availability: InStock

FDUJ224HKXE HEAT EXCH. AND FAN

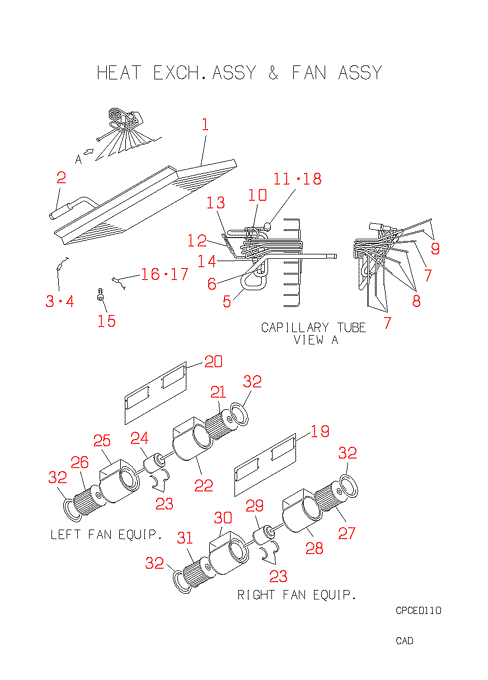

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJD301A036G

HEAT EXCH ASSY(AIR

[1-14] Contact

PJD301A020D

Contact

[2] Contact

PJD315D014

Contact

[3] In Stock

PJD551A002

SENSOR

Notes: THI-R Show Image

[4] In Stock

RKF941F002A

SPRING

Notes: FOR THI-R Show Image

[5-14] In Stock

PJD315A039A

VALVE ASSY

[5-6] Contact

PJD321A174

PIPING ASSY

Contact

[6] Contact

SSA357A008BK

STRAINER

Contact

[7] Contact

PJD315B080

CAPILLARY

Contact

Notes: !D3.5XD4.0 L150

[7-10] Contact

PJD315B083A

DISTRIBUTOR

Contact

[8] Contact

PJD315B080A

CAPILLARY

Contact

Notes: !D3.5XD4.0 L150

[9] Contact

PJD315B080B

CAPILLARY

Contact

Notes: !D2.4XD4.0 L185

[10] Contact

SSA315A206J

DISTRIBUTOR

Contact

[11] In Stock

SSA387F023

EXP HKXA

Show Image

[12] In Stock

SSA385A015

VALVE CHECK

Show Image

[13] Contact

PJD315B185A

CAPILLARY

Contact

Notes: !D1.5XD2.5 L500

[13-14] Contact

PJD321A175A

PIPING ASSY

Contact

[14] Contact

SSA357A008Z

STRAINER

Contact

[15] In Stock

PJD536A002A

SWITCH,FLOT

Notes: FS Show Image

[16] In Stock

PJA551A010

SENSOR ASSY

Notes: THI-A Show Image

[17] Contact

SSA937C290

CLIP

Contact

Notes: FOR THI-A

[18] In Stock

SSA382F452A

COIL S 700

Notes: SM

[19] In Stock

PJD116A014

FAN BRACKET

Notes: RIGHT FAN EQUIP.

[20] In Stock

PJD116A014A

BRAKET FAN

Notes: LEFT FAN EQUIP.

[21] In Stock

SSA431C020B

IMPELLER

Notes: LEFT SIDE OF RIGHT FAN EQUIP.

[22] Out of Stock

PJD433A001B

CASING

Notes: LEFT SIDE OF RIGHT FAN EQUIP.

[23] In Stock

PFA116A108

BRACKET

Show Image

[24] In Stock

SSA511A363V

MOTOR AC

Notes: LEFT FAN EQUIP.

[25] In Stock

PJD433A001C

CASING

Notes: LEFT SIDE OF LEFT FAN EQUIP.

[26] In Stock

SSA431C020C

IMPELLER

Notes: LEFT SIDE OF LEFT FAN EQUIP.

[27] In Stock

SSA431C005A

IMPELLER

Notes: RIGHT SIDE OF RIGHT FAN EQUIP.

[28] In Stock

PJD433A001

CASING

Notes: RIGHT SIDE OF RIGHT FAN EQUIP.

[29] In Stock

SSA511A363V

MOTOR AC

Notes: LEFT FAN EQUIP.

[30] In Stock

PJD433A001A

CASING

Notes: LEFT SIDE OF RIGHT FAN EQUIP. Show Image

[31] In Stock

SSA431C005

IMPELLER

Notes: LEFT SIDE OF RIGHT FAN EQUIP.

[32] In Stock

PDD433A003

SHROUD
