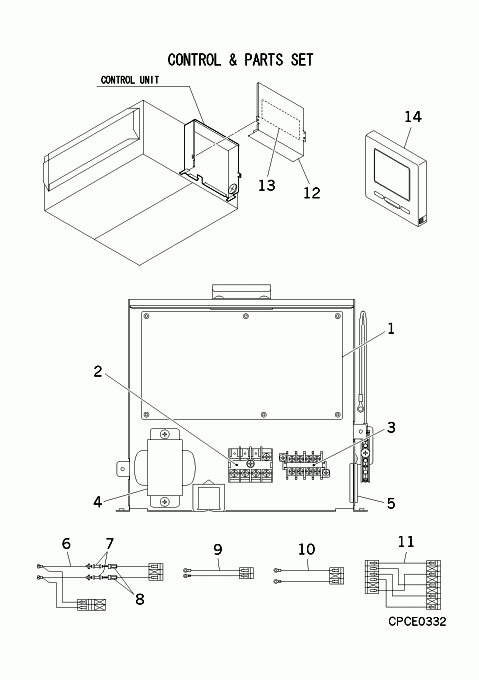

FDUH36KXE6F/1 CONTROL AND PARTS SET

FDUH36KXE6F/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

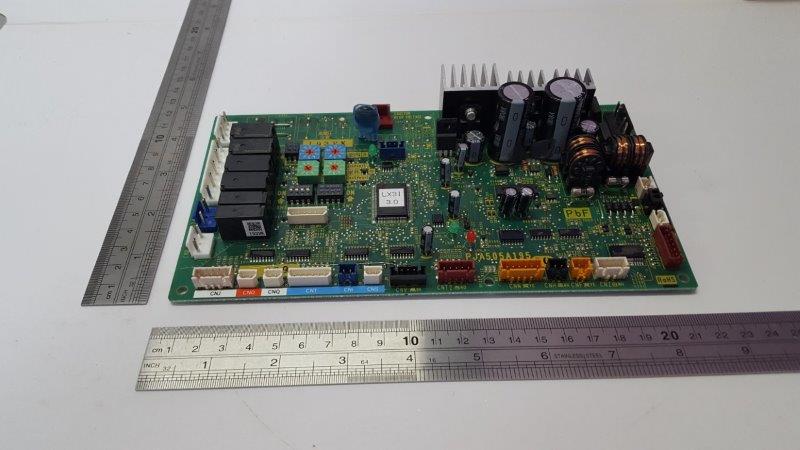

[1] In Stock
PJA505A193VD
PWB ASSY
Show Image
PJA505A193VD
[1-11] Contact
PJC501A205AC
Contact
[2] In Stock
SSA561B702C
BLOCK,TERMINAL
Notes: TB1
[3] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[4] In Stock
SSA554A487
TRANSFORMER
Notes: TR Show Image
SSA554A487
[5] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[6-8] Contact
PFA504A618K
WIRING(TB,POWER)
Contact
Notes: TB1 1,TB1 2- CNW0 PWB,CNU
[7] In Stock
SSA564A116G
FUSE(CURRENT)
Notes: 3.15A, 3.15 AMP FUSE Show Image
SSA564A116G
[8] In Stock
RWC564B002
HOLDER,FUSE
Show Image
RWC564B002
[9] Contact
PJF504A010F
WIRING(TB,AB)
Contact
Notes: TB2 A,TB2 B- CNK1 PWB
[10] Contact
PJF504A006C
WIRING(TB,XY)
Contact
Notes: TB2 X,TB2 Y- CNB PWB, TB2 X,TB2 Y-CNB PWB
[11] Contact
PJC504A048A
WIRING(FM)
Contact
Notes: CNF1 FMI1- CNM3 PWB
[12-13] Contact
PJC142A212
LID ASSY,CONTROL B
Contact
[13] Contact
PJC011G203
LABEL,WIRING
Contact
[14] Contact
PJZ502A024AB
Advanced Wired Remote
Contact
Notes: RC-EX1A, SALES ITEM - ECO TOUCH
[15] Contact
PJC011F208C
Contact
SKU: FDUH36KXE6F/1 CONTROL AND PARTS SET Category:
