FDUH22KXE6F/1 HEAT EXCH. AND FAN

FDUH22KXE6F/1 HEAT EXCH. AND FAN

Available Parts

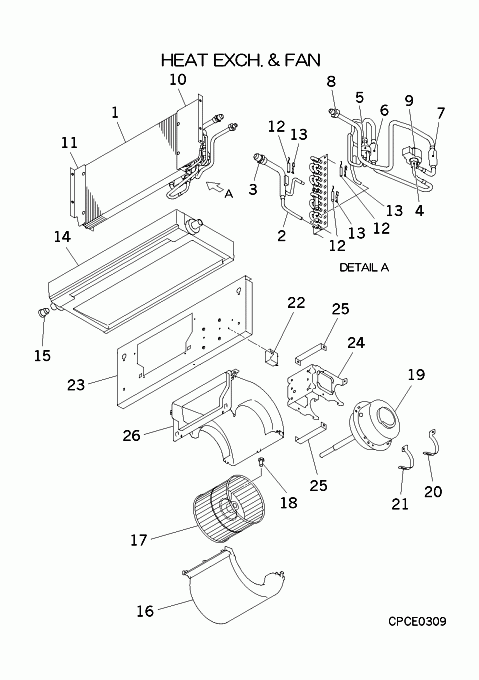

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJC311A119 HEAT EXCH(AIR) Contact   Contact
  • [1-13] PJC301A114A HEAT EXCH ASSY(AIR Contact   Contact
  • [2-3] PJC315D133 HEADER ASSY,GAS Contact   Contact
  • [3] SSA323F001C UNION(SLD) Contact   Contact
  • [4] SSA387F047B EXP VALVE In Stock Notes: EXPANSION VALVE BODY, SM Show Image
  • [5] SSA315A255C DISTRIBUTOR Contact   Contact
  • [5-6] PJC315A111 DISTRIBUTOR Contact   Contact
  • [6] SSA357A005T STRAINER In Stock
  • [7] SSA357A005B STRAINER In Stock Show Image
  • [8] SSA323F075 UNION Contact   Contact
  • [9] SSA382F228Y COIL SOLENOID In Stock Notes: FOR SM Show Image
  • [10] PJC141A122 PLATE ASSY,BAFFLE( Contact   Contact
  • [11] PJC141A124 PLATE ASSY,BAFFLE( Contact   Contact
  • [12] PJF551A002G SENSOR ASSY(TEMP) In Stock Notes: THI-R1,2,3, THI-R1,2,3 Show Image
  • [13] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR THI-R Show Image
  • [14-15] PJC454A200 PAN ASSY,DRAIN Contact   Contact
  • [15] SSA326A003F PLUG In Stock Show Image
  • [16] PSA099A616 CASING ASSY In Stock Notes: UPPER AND LOWER, INCLUDED NO.26
  • [17-18] SSA431D081A IMPELLER Out of Stock Notes: FAN BARREL Show Image
  • [18] SSA912F002DF SCREW,SET(S Contact Notes: 1PC ONLY   Contact
  • [19] SSA511T807A MOTOR,AC In Stock
  • [20] PFA116A207H BRACKET In Stock Substitute: PJG116A063A Notes: RIGHT Show Image
  • [21] PFA116A207G BRACKET In Stock Substitute: PJG116A063 Notes: LEFT Show Image
  • [22] SSA552A497D CAPACITOR,RUNNING In Stock Notes: 1.6MF 400V, 1.6MF 450VAC Show Image
  • [23] PJC116A146 BRACKET ASSY Contact   Contact
  • [24] PJC116A144 BRACKET(MOTOR) Contact   Contact
  • [25] PJC119A070 PLATE Contact   Contact
SKU: FDUH22KXE6F/1 HEAT EXCH. AND FAN Category:
