FDUC71KXZE1J HEAT EXCH AND FAN

FDUC71KXZE1J HEAT EXCH AND FAN

FDUC71KXZE1J HEAT EXCH AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

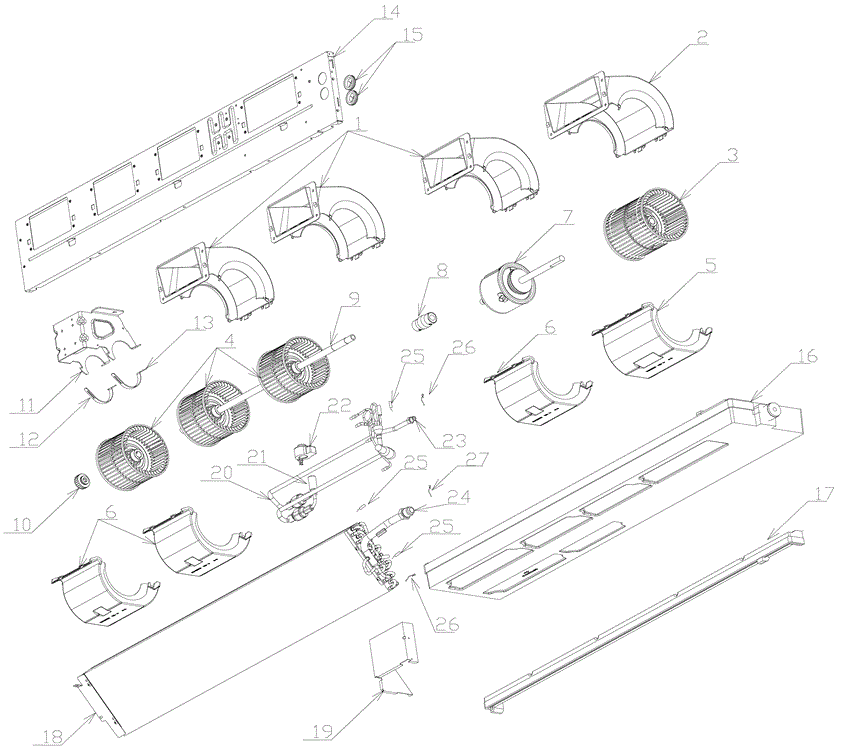

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RYD433B009
CASING(U)
Contact
[2] Contact
RYD433B007
CASING(U)
Contact
[3] Contact
RYD431D004
IMPELLER
Contact
[4] Contact
RYD431D001
IMPELLER
Contact
[5] Contact
RYD433B008
CASING(Bottom)
Contact
[6] Contact
RYD433B010
CASING(Bottom)
Contact
[7] Contact
RYD512T055A
MOTOR,DC
Contact
[8] Contact
RYD272A002
COUPRING
Contact
[9] Contact
RYD271A001B
SHAFT
Contact
[10] Contact
RYD923C001
BEARING,PLANE
Contact
[11] Contact
RYD116A066
BRACKET(MOTOR)
Contact
[12] Contact
RYD116A040
PLATE
Contact
[13] Contact
RYD116A040A
PLATE
Contact
[14] Contact
RYD141A048
PLATE,BAFFLE
Contact
[15] In Stock
S751W25X
GROMMET
Show Image
S751W25X
[16] Contact
RYD454A022A
PAN ASSY,DRAIN
Contact
[17] Contact
RYD153C066
INSULATION ASSY,TOP
Contact
[18] Contact
RYD301A154
HEAT EXCH ASSY(AIR)
Contact
[19] Contact
RYD141A039
PLATE,BAFFLE(R)
Contact
[20] Contact
RYD315A050
VALVE ASSY,EXPANSION
Contact
[21] In Stock
SSA387F047B
EXP VALVE
Notes: Expansion Valve Body Show Image
SSA387F047B
[22] Contact
RYD382F001A
COIL,SOLENOID
Contact
[23] Contact
SSA323F075A
UNION
Contact
[24] Contact
RYG323F007
UNION,SOLDER
Contact
[25] Contact
RYD551A016A
SENSOR ASSY(HEAT EXCHANGER)
Contact
[26] Contact
RYF941F001
SPRING,LEAF
Contact
[27] In Stock
RYA941F001
SPRING
SKU: FDUC71KXZE1J HEAT EXCH AND FAN Category:
