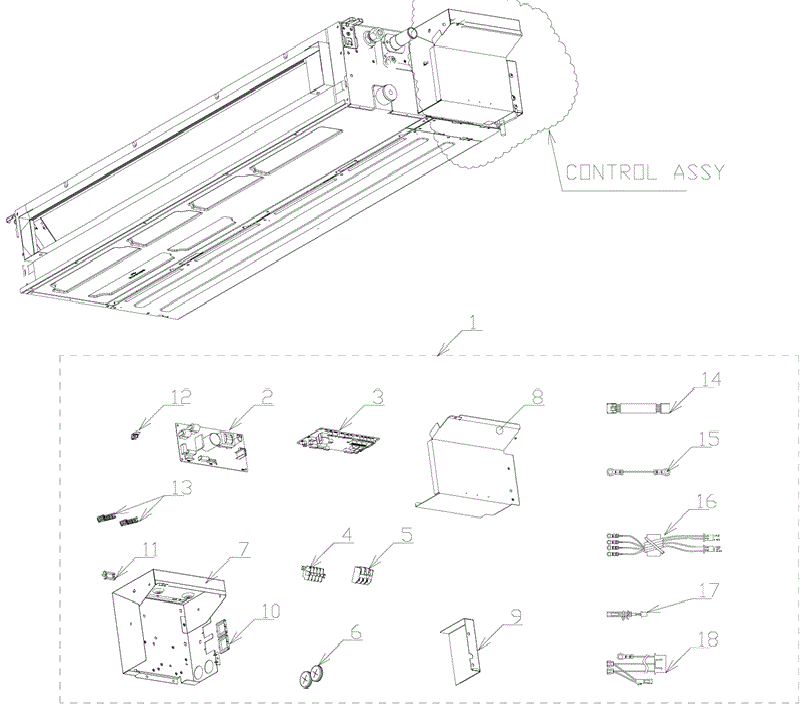

FDUC71KXZE1J CONTROL ASSY

FDUC71KXZE1J CONTROL ASSY

FDUC71KXZE1J CONTROL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RYD501A197A
CONTROL ASSY(71)
Contact
[2] Contact
PJA505A524K
PWB ASSY(POWER)
Contact
[3] Contact
RYD505A107
PWB ASSY
Contact
[4] Contact
RYG561B006
BLOCK,TERMINAL
Contact
[5] Contact
RYS561B100
BLOCK,TERMINAL
Contact
[6] In Stock
S751W25X
GROMMET
Show Image
S751W25X
[7] Contact
RYD142A160
BOX,CONTROL
Contact
[8] Contact
RYD142A165
LID,CONTROL BOX
Contact
[9] Contact
RYD142A164
COVER,CONTROL
Contact
[10] Contact
SSA947H111
EDGING
Contact
[11] Contact
SSA937C227
CLIP
Contact
[12] In Stock
SSA937G103
SUPPORT,LOCKING
[13] Contact
RYG937D014
BAND
Contact
[14] Contact
RYD504A115
HARNESS ASSY
Contact
[15] Contact
RYG504A109
HARNESS ASSY
Contact
[16] Contact
RYD504A122
HARNESS ASSY
Contact
[17] Contact
RYD551A020
SENSOR ASSY(RETURN AIR)
Contact
[18] Contact
RYD504A110
HARNESS ASSY
Contact
