FDUC71KXZE1J CABINET

FDUC71KXZE1J CABINET

FDUC71KXZE1J CABINET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

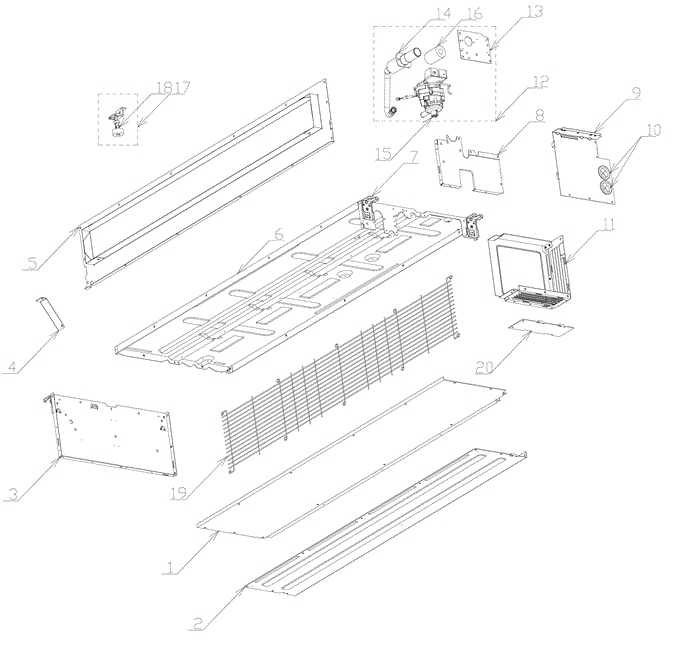

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RYD111A040B
PLATE ASSY,BOTTOM
Contact
[2] Contact
RYD125A017
PANEL ASSY,REAR
Contact
[3] Contact
RYD123A017
PANEL,SIDE(L)
Contact
[4] Contact
RYD119A011
PLATE ASSY(HEAT EX)
Contact
[5] Contact
RYD438A015
JOINT ASSY,DUCT(OUT)
Contact
[6] Contact
RYD124A015A
PANEL ASSY,TOP
Contact
[7] Contact
RYD032A018
HOLDER
Contact
[8] Contact
RYD132A036
LID ASSY,PUMP
Contact
[9] Contact
RYD142A159A
LID,CONTROL BOX
Contact
[10] In Stock
S751W30X
GROMMET V14
Notes: ***SOLD INDIVIDUALLY*** Show Image
S751W30X
[11] Contact
RYD116A084A
BRACKET
Contact
[12] Contact
RYD451A011
PUMP ASSY,DRAIN
Contact
[13] Contact
RYD132A032A
LID(DRAIN SOCKET)
Contact
[14] Contact
RYD423A012
HOSE,DRAIN ASSY
Contact
[15] Contact
RYD451A008A
PUMP ASSY,DRAIN
Contact
[16] Contact
SSA151B211B
INSULATION,PIPE
Contact
[17] Contact
RYD536A001F
SWITCH ASSY,FLOAT
Contact
[18] Contact
RYD536A002C
SWITCH,FLOAT
Contact
[19] Contact
RYD131A014
GUARD,FAN
Contact
[20] Contact
RYD119A017
PLATE
Contact
SKU: FDUC71KXZE1J CABINET Category:
