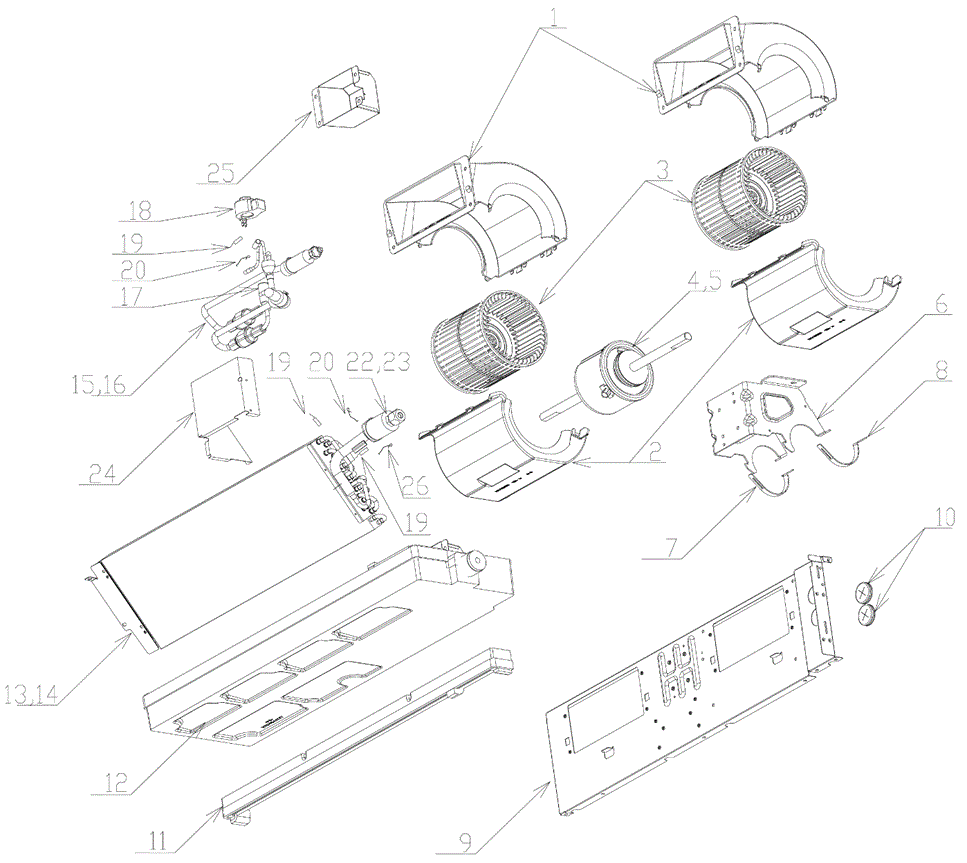

FDUC36KXZE1J HEAT EXCH AND FAN

FDUC36KXZE1J HEAT EXCH AND FAN

FDUC36KXZE1J HEAT EXCH AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RYD433B007
CASING(U)
Contact
[2] Contact
RYD433B008
CASING(Bottom)
Contact
[3] Contact
RYD431D003
IMPELLER
Contact
[5] Contact
RYD511A027C
MOTOR,AC
Contact
[6] Contact
RYD116A066
BRACKET(MOTOR)
Contact
[7] Contact
RYD116A040
PLATE
Contact
[8] Contact
RYD116A040A
PLATE
Contact
[9] Contact
RYD141A046A
PLATE,BAFFLE(FAN)
Contact
[10] In Stock
S751W25X
GROMMET
Show Image
S751W25X
[11] Contact
RYD153C064
INSULATION ASSY,TOP
Contact
[12] Contact
RYD454A020B
PAN ASSY,DRAIN
Contact
[14] Contact
RYD301A152
HEAT EXCH ASSY(AIR)
Contact
[16] Contact
RYD315A046
VALVE ASSY,EXPANSION
Contact
[17] In Stock
SSA387F047B
EXP VALVE
Notes: Expansion Valve Body Show Image
SSA387F047B
[18] Contact
RYD382F001
COIL,SOLENOID
Contact
[19] Contact
RYD551A015A
SENSOR ASSY(HEAT EXCHANGER)
Contact
[20] Contact
RYF941F001
SPRING,LEAF
Contact
[21] Contact
RYG323F008
UNION,SOLDER
Contact
[23] In Stock
SSA323F012B
UNION
Show Image
SSA323F012B
[24] Contact
RYD141A039
PLATE,BAFFLE(R)
Contact
[25] Contact
RYD132A039
COVER,PLATE
Contact
[26] In Stock
RYA941F001
SPRING
SKU: FDUC36KXZE1J HEAT EXCH AND FAN Category:
