FDUC22KXZE1J CABINET

FDUC22KXZE1J CABINET

FDUC22KXZE1J CABINET

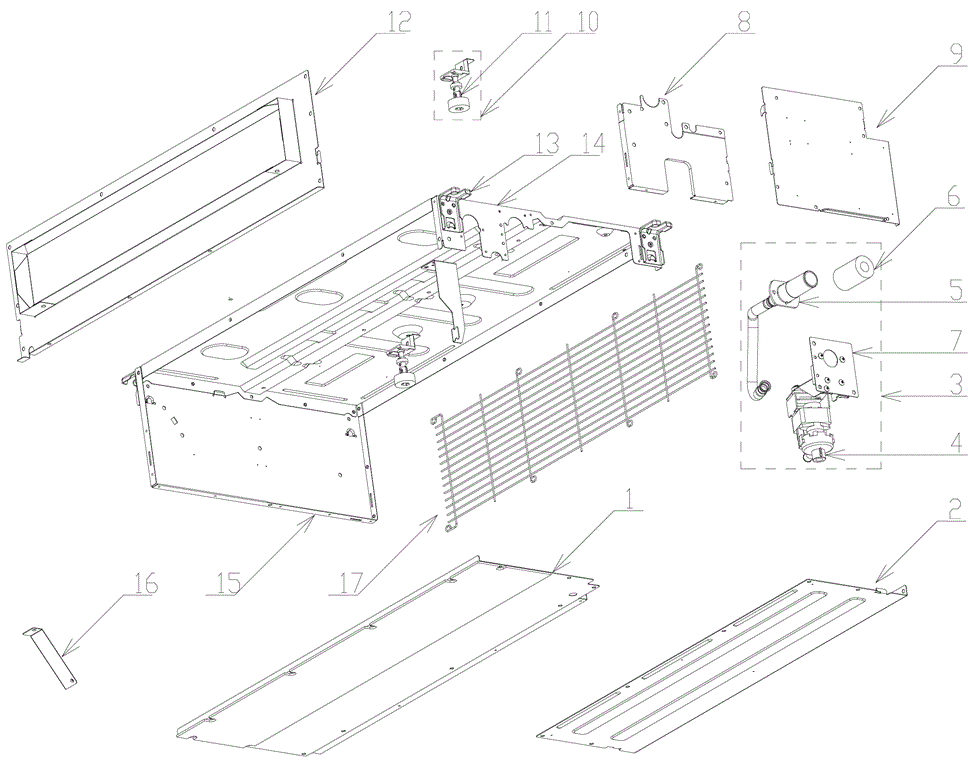

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RYD111A040C
PLATE ASSY,BOTTOM
Contact
[2] Contact
RYD125A015
PANEL ASSY,REAR
Contact
[3] Contact
RYD451A010
PUMP ASSY,DRAIN
Contact
[4] Contact
RYD451A004C
PUMP ASSY,DRAIN
Contact
[5] Contact
RYD423A012
HOSE,DRAIN ASSY
Contact
[6] Contact
SSA151B211B
INSULATION,PIPE
Contact
[7] Contact
RYD132A038
LID,PUMP
Contact
[8] Contact
RYD132A047
LID ASSY,PUMP
Contact
[9] Contact
RYD142A162
LID,CONTROL BOX
Contact
[10] Contact
RYD536A001D
SWITCH ASSY,FLOAT
Contact
[11] Contact
RYD536A002B
SWITCH,FLOAT
Contact
[12] Contact
RYD438A013
JOINT ASSY,DUCT(OUT)
Contact
[13] Contact
RYD032A018
HOLDER
Contact
[14] Contact
RYD124A013A
PANEL ASSY,TOP
Contact
[15] Contact
RYD123A017
PANEL,SIDE(L)
Contact
[16] Contact
RYD119A011
PLATE ASSY(HEAT EX)
Contact
[17] Contact
RYD131A012
GUARD,FAN
Contact
