FDUA801R HEAT EXCH. AND FAN

FDUA801R HEAT EXCH. AND FAN

Available Parts

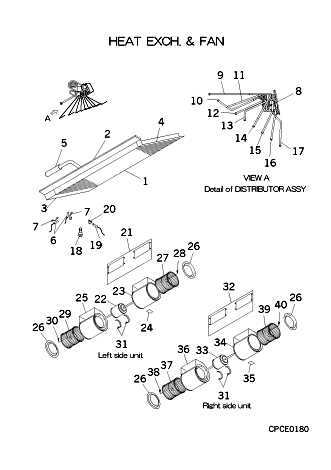

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJD311A001F HEAT EXCH Contact   Contact
  • [1-17] PJD301A033 HEAT EXCH In Stock Notes: INDOOR HEAT EXCHANGER COIL
  • [2] PJD141A002B PLATE BAFF Contact   Contact
  • [3] PJD141A007 PLATE BAFF Contact Notes: LEFT   Contact
  • [4] PJD141A008 PLATE BAFF Contact Notes: RIGHT   Contact
  • [5] PJD315D055 HEADER ASSY,GAS Contact   Contact
  • [6] PJA551A005BL SENSOR In Stock Notes: THI-R1,2 Show Image
  • [7] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR SENSOR Show Image
  • [8] SSA315A206J DISTRIBUTOR Contact   Contact
  • [8-17] PJD315A058 DISTRIBUTOR ASSY Contact   Contact
  • [9] PJD315B118 CAPILLARY ASSY(1) Contact Notes: !D2.4XD4.0 L500   Contact
  • [10] PJD315B119 CAPILLARY ASSY(2) Contact Notes: !D2.4XD4.0 L500   Contact
  • [11] PJD315B120 CAPILLARY ASSY(3) Contact Notes: !D2.2XD4.0 L500   Contact
  • [12] PJD315B121 CAPILLARY ASSY(4) Contact Notes: !D2.0XD4.0 L500   Contact
  • [13] PJD315B122 CAPILLARY ASSY(5) Contact Notes: !D2.4XD4.0 L600   Contact
  • [14] PJD315B123 CAPILLARY ASSY(6) Contact Notes: !D2.2XD4.0 L500   Contact
  • [15] PJD315B124 CAPILLARY ASSY(7) Contact Notes: !D2.0XD4.0 L500   Contact
  • [16] PJD315B125 CAPILLARY ASSY(8) Contact Notes: !D2.2XD4.0 L500   Contact
  • [17] PJD315B126 CAPILLARY ASSY(9) Contact Notes: !D2.6XD4.0 L500   Contact
  • [18] PJD536A002B SWITCH ASSY In Stock Notes: FS Show Image
  • [19] PJA551A010T SENSOR(TEMP In Stock Notes: THI-A Show Image
  • [19-20] PJD551A001C SENSOR ASSY Contact   Contact
  • [20] SSA937C290 CLIP Contact Notes: FOR THI-A   Contact
  • [21] PJD116A014A BRAKET FAN In Stock
  • [22] SSA511A363V MOTOR AC In Stock
  • [23-24] PJD433A001F CASING In Stock
  • [24] RSA011H005 LABEL Contact   Contact
  • [25] PJD433A001C CASING In Stock
  • [26] PDD433A003 SHROUD In Stock Substitute: RB32994
  • [27-28] SSA431C020B IMPELLER In Stock
  • [28] SSA912F203 SCREW,SET In Stock Substitute: RK01594 Notes: 1PC ONLY/ LENGTH 2CM, M8X12 Show Image
  • [29-30] SSA431C020C IMPELLER In Stock
  • [30] SSA912F203 SCREW,SET In Stock Substitute: RK01594 Notes: 1PC ONLY/ LENGTH 2CM, M8X12 Show Image
  • [31] PFA116A108 BRACKET In Stock Show Image
  • [32] PJD116A014 FAN BRACKET In Stock Notes: RIGHT FAN EQUIP.
  • [33] SSA511A363V MOTOR AC In Stock
  • [34-35] PJD433A001D CASING In Stock Notes: RIGHT SIDE OF RIGHT FAN EQUIP., RIGHT SIDE OF RIGHT FAN EQUIP
  • [35] RSA011H005 LABEL Contact   Contact
  • [36] PJD433A001A CASING In Stock
  • [37-38] SSA431C005 IMPELLER In Stock Substitute: RB32495
  • [38] SSA912F203 SCREW,SET In Stock Substitute: RK01594 Notes: 1PC ONLY/ LENGTH 2CM, M8X12 Show Image
  • [39-40] SSA431C005A IMPELLER In Stock Substitute: RB32495A
  • [40] SSA912F203 SCREW,SET In Stock Substitute: RK01594 Notes: 1PC ONLY/ LENGTH 2CM, M8X12 Show Image
SKU: FDUA801R HEAT EXCH. AND FAN Category:
