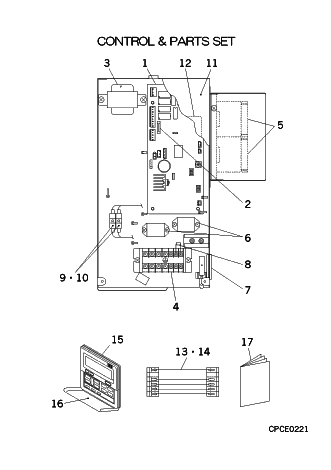

FDUA801R CONTROL AND PARTS SET

FDUA801R CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock
PJA505A131ZC
PWB ASSY
Substitute: OUT OF PRODUCTION Show Image
PJA505A131ZC
[1-10] Contact
PJD501A053B
CONTROL UNIT
Contact
Notes: NOT AVAILABLE
[2] In Stock
SSA564A116G
FUSE(CURRENT)
Notes: 3.15A, 3.15 AMP FUSE Show Image
SSA564A116G
[3] In Stock
SSA554A358A
TRANSFORMER
Notes: TX Show Image
SSA554A358A
[4] Contact
SSA561B716FD
BLOCK,TERMINAL
Contact
Notes: TB
[5] In Stock
SSA552A080
CAPACITOR,R
[6] In Stock
SSA521F079
RELAY
Notes: 52FL,52FM,52FH, SOLD INDIVIDUALLY - SOME UNITS HAVE MULTIPLE Show Image
SSA521F079
[7] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[8] Contact
PJD552D003
CAPACITOR A
Contact
[9] In Stock
SSA564A087H
FUSE
Notes: F1,2 6.3A, 6.3A Show Image
SSA564A087H
[10] In Stock
SSA564B076
HOLDER,FUSE
Show Image
SSA564B076
[11-12] Contact
PJD142A003DC
LID ASSY(CONTROL)
Contact
[12] Contact
PJD011G018A
LABEL,WIRING
Contact
[13] In Stock
PJD504A002D
WIRING ASSY
Notes: CNF2-CNF4 Show Image
PJD504A002D
[14] In Stock
PJD504A002C
WIRING ASSY
Notes: CNF3-CNF5 Show Image
PJD504A002C
[15-16] Out of Stock
PJA502A700AC
WALL CONTROLLER
Substitute: RC-E1R Notes: RC-E1R, RC-E1 / RC-E1R - 3 WIRE, X-Y-Z
[16] Contact
PJA129A708
COVER Z
Contact
[17] Contact
PJA012A733
MANUAL,INSTRUCTION
Contact
[18] Contact
PJD011F036A
LABEL,MODEL NAME
Contact
