FDUA250VH/C CONTROL AND PARTS SET

Name: FDUA250VH/C CONTROL AND PARTS SET
SKU: FDUA250VH/C CONTROL AND PARTS SET
Availability: InStock

FDUA250VH/C CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

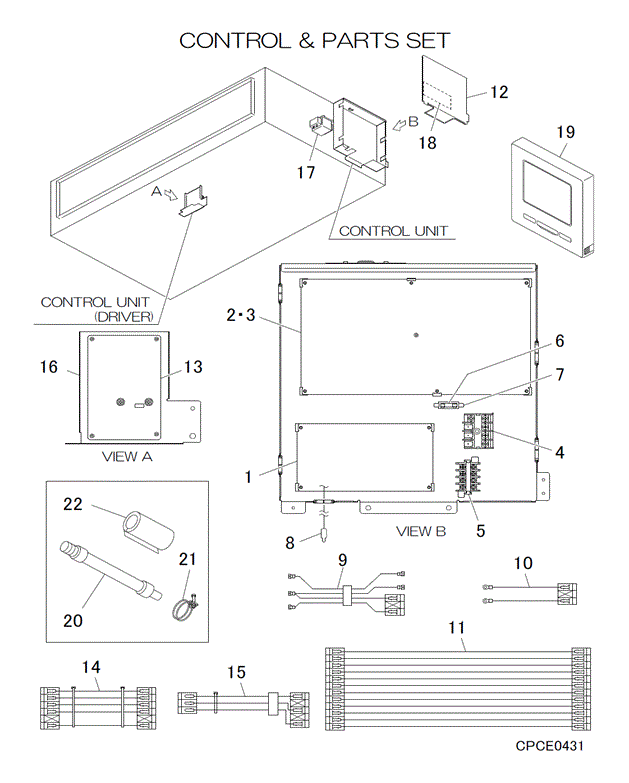

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A228SG

PWB ASSY (CONTROL)

Notes: ONLY FOR SUPPLY PARTS, For FDUA250VH/C - FUSE *F2* IS PART SSA564A149AC (2 AMP).

[2-3] Out of Stock

PJA505A248C

PWB ASSY(POWER)

Notes: ONLY FOR SUPPLY PARTS

[3] In Stock

SSA564A149AG

FUSE(CURRENT)

Notes: F1 4A, F 4A‚ - 4 AMP FUSE - ****NOT MAIN FUSE**** Show Image

[4] In Stock

SSA561B702

BLOCK,TERMINAL

Notes: TB1 Show Image

[5] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[6] In Stock

SSA564A149AL

FUSE(CURRENT)

Notes: F3 10A, 10A Show Image

[7] In Stock

SSA564B076

HOLDER,FUSE

Show Image

[8] In Stock

PSA551A001CG

SENSOR ASSY

Notes: THI-A, THI-A - RETURN AIR SENSOR Show Image

[9] Contact

PJG504A017

HARNESS ASSY

Contact

Notes: TB1 1,TB1 2,TB1 3- FH,T2,CNW3

[10] In Stock

PJF504A006K

WIRING(TB,XY)

Notes: TB2 X,TB2 Y- CNB PWB Show Image

[11] In Stock

PJG504A024H

WIRING (PWB)

Notes: CNW2 PWB- CNW1 PWB Show Image

[12] In Stock

PJG142A031

LID,CONTROL BOX

[13] In Stock

PJA505A251C

PWB ASSY (MOTOR)

Notes: ONLY FOR SUPPLAY PARTS Show Image

[13-16] Contact

PJG501A015C

CONTROL UNIT (DRIVER)

Contact

[14] Contact

PJG504A015A

WIRING (CNM)

Contact

Notes: CNM1 PWB- CNM PWB

[15] In Stock

PJG504A016

WIRING(FM)

Notes: CNFM2- CNFM PWB Show Image

[16] In Stock

PJG142A034A

LID ASSY(DRIVER)

[17] In Stock

SSA554B115

REACTOR

[18] Contact

PJG011G021B

LABEL, WIRING

Contact

[19] Contact

PJZ502A031GC

Advanced Wired Remote

Contact

Substitute: RC-EXZ3A Notes: RC-EXZ3A, ECO TOUCH - SALES ITEM

[20] Contact

PSA423A802

HOSE ASSY, DRAIN

Contact

[20-22] In Stock

PJF008A001CD

PARTS SET

[21] In Stock

V300Y32

HOSE CLAMP

[22] In Stock

SSA153B016BA

INSULATION,PIPE

Show Image
